HVAC Control Module C2 Connector End View

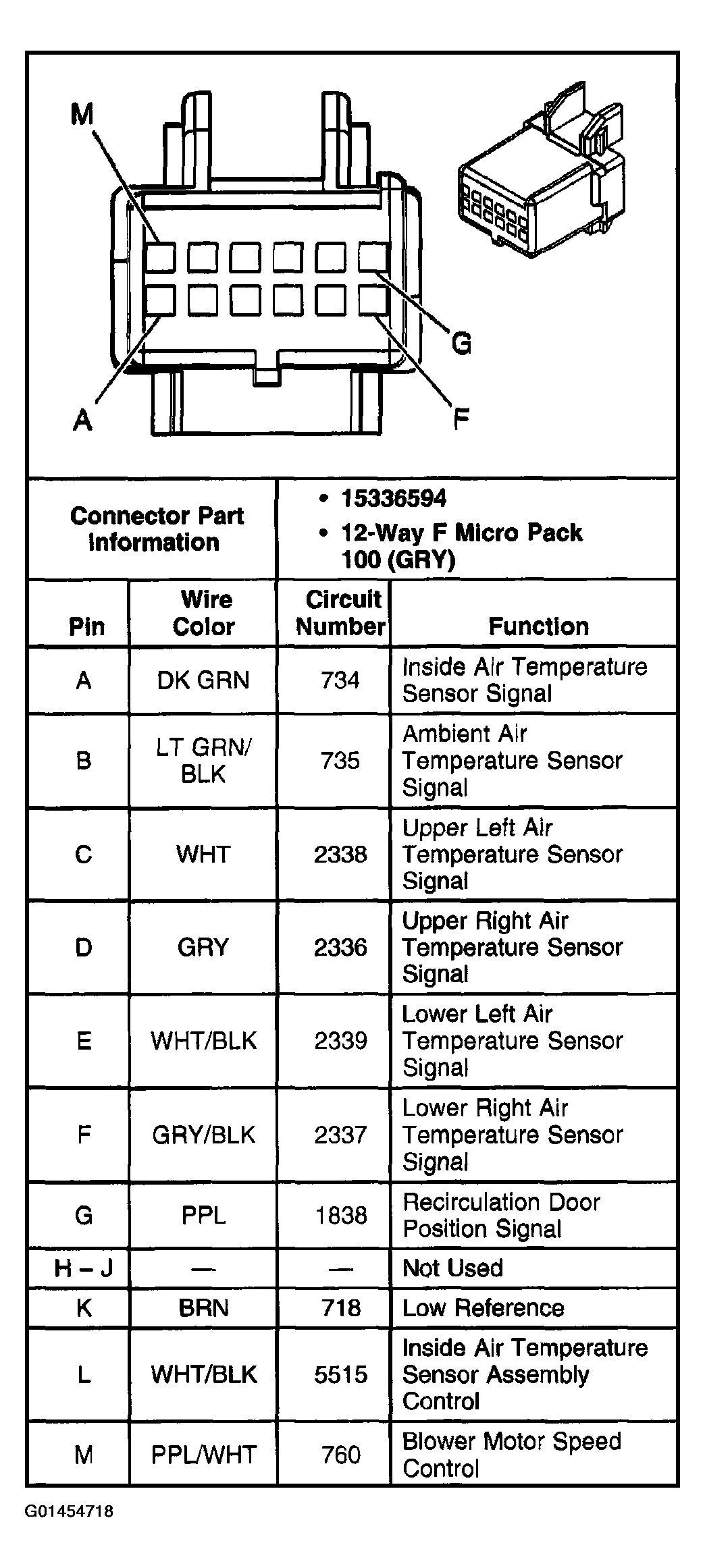

Fig 1: HVAC Control Module C2 Connector End View
G01454718Courtesy of GENERAL MOTORS CORP.
