HVAC Control Module Connector End View - C1 (1 Of 2)

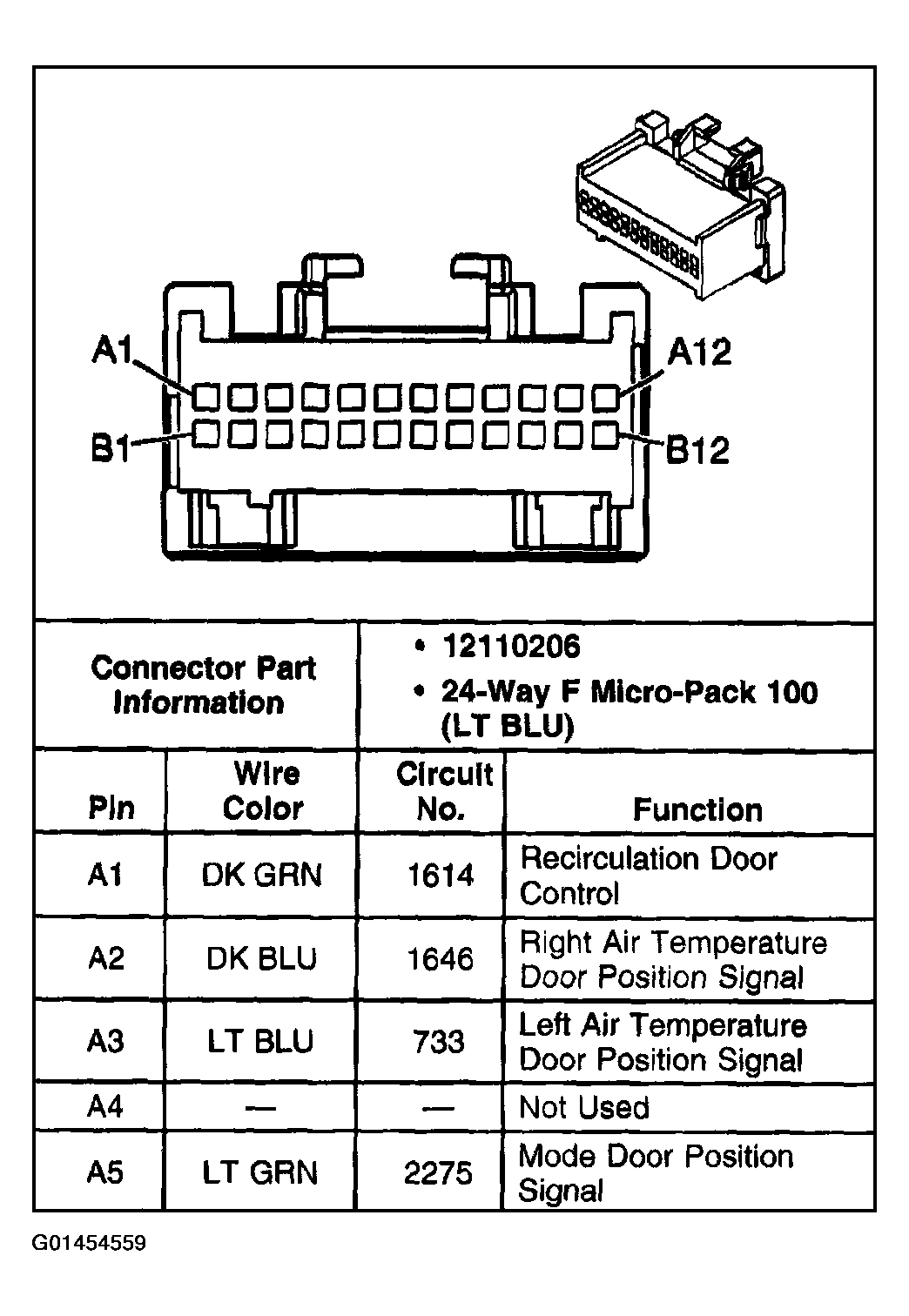

Fig 1: HVAC Control Module Connector End View - C1 (1 Of 2)
G01454559Courtesy of GENERAL MOTORS CORP.
