HVAC Control Module Connector End View - C1 (2 Of 2)

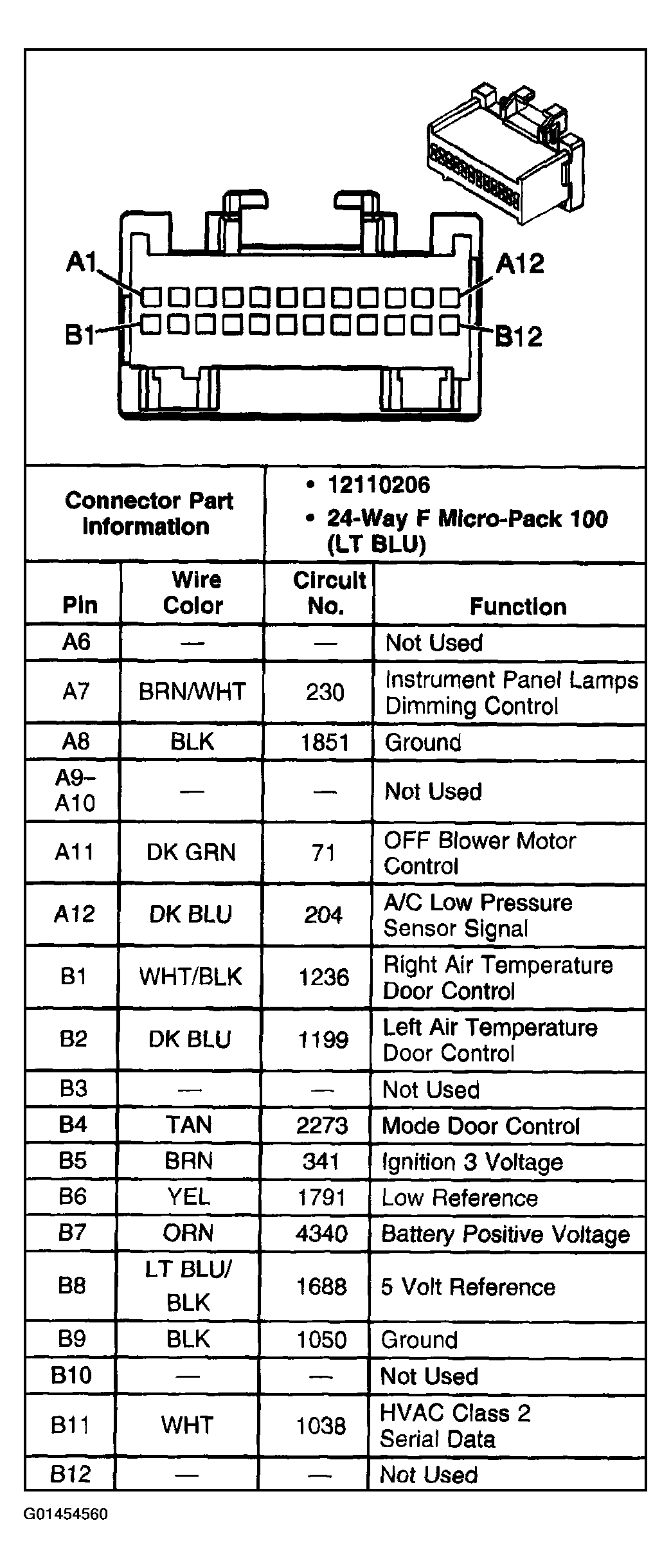

Fig 1: HVAC Control Module Connector End View - C1 (2 Of 2)
G01454560Courtesy of GENERAL MOTORS CORP.
