HVAC Control Module Connector End View - C2

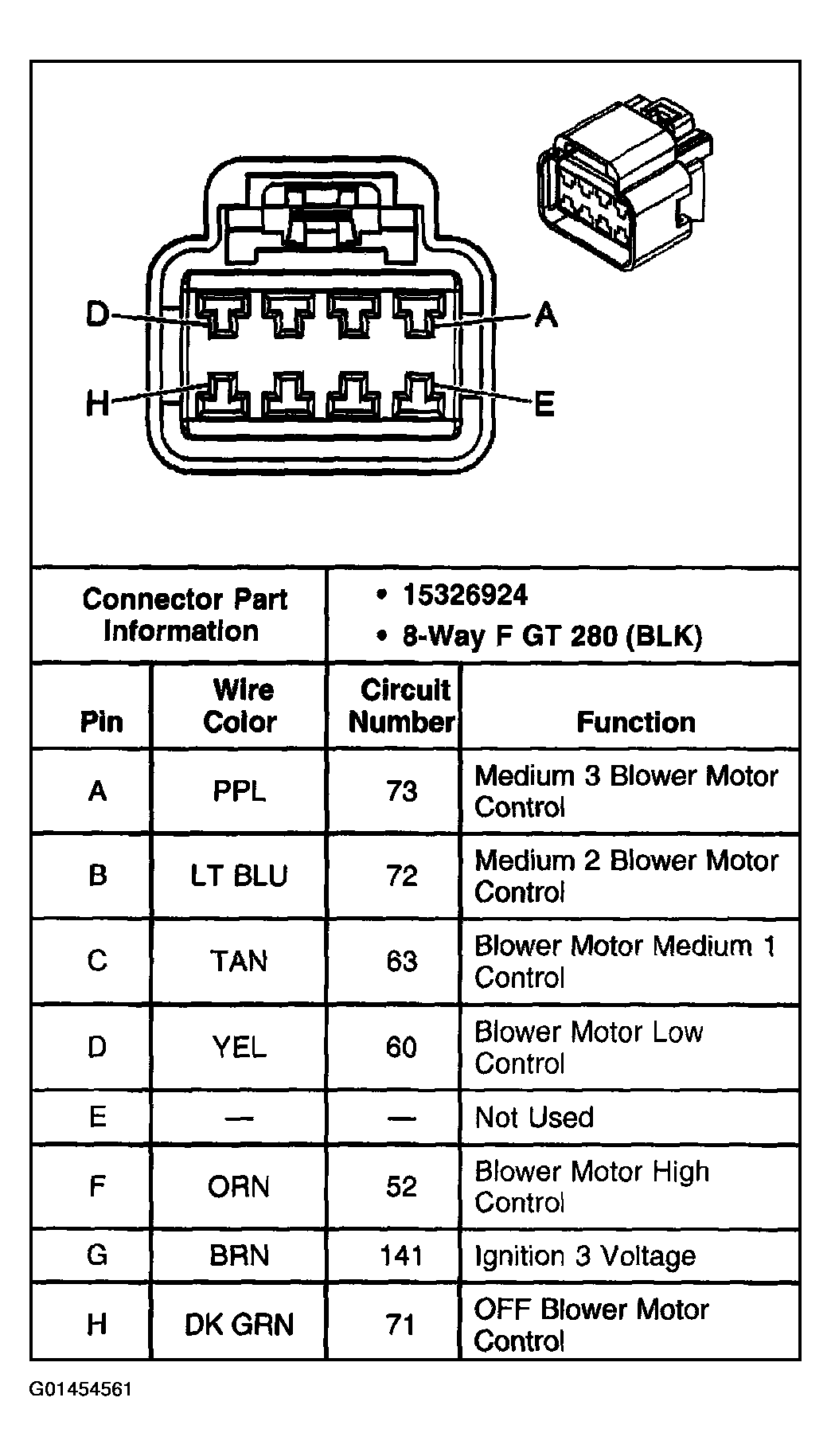

Fig 1: HVAC Control Module Connector End View - C2
G01454561Courtesy of GENERAL MOTORS CORP.
