Horn-Left-Low Note Connector End View

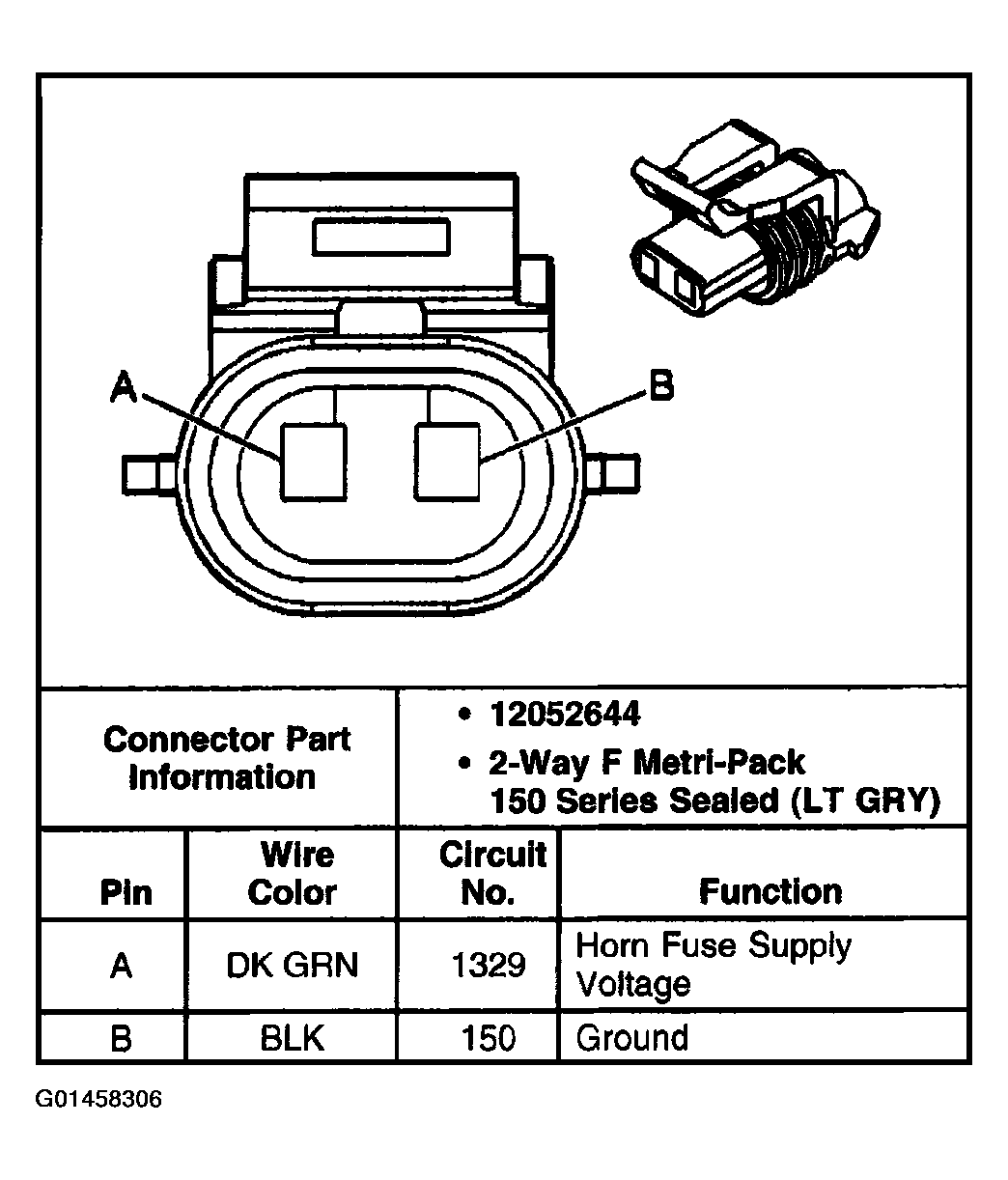

Fig 1: Horn-Left-Low Note Connector End View
G01458306Courtesy of GENERAL MOTORS CORP.
