Horn-Right-High Note Connector End View

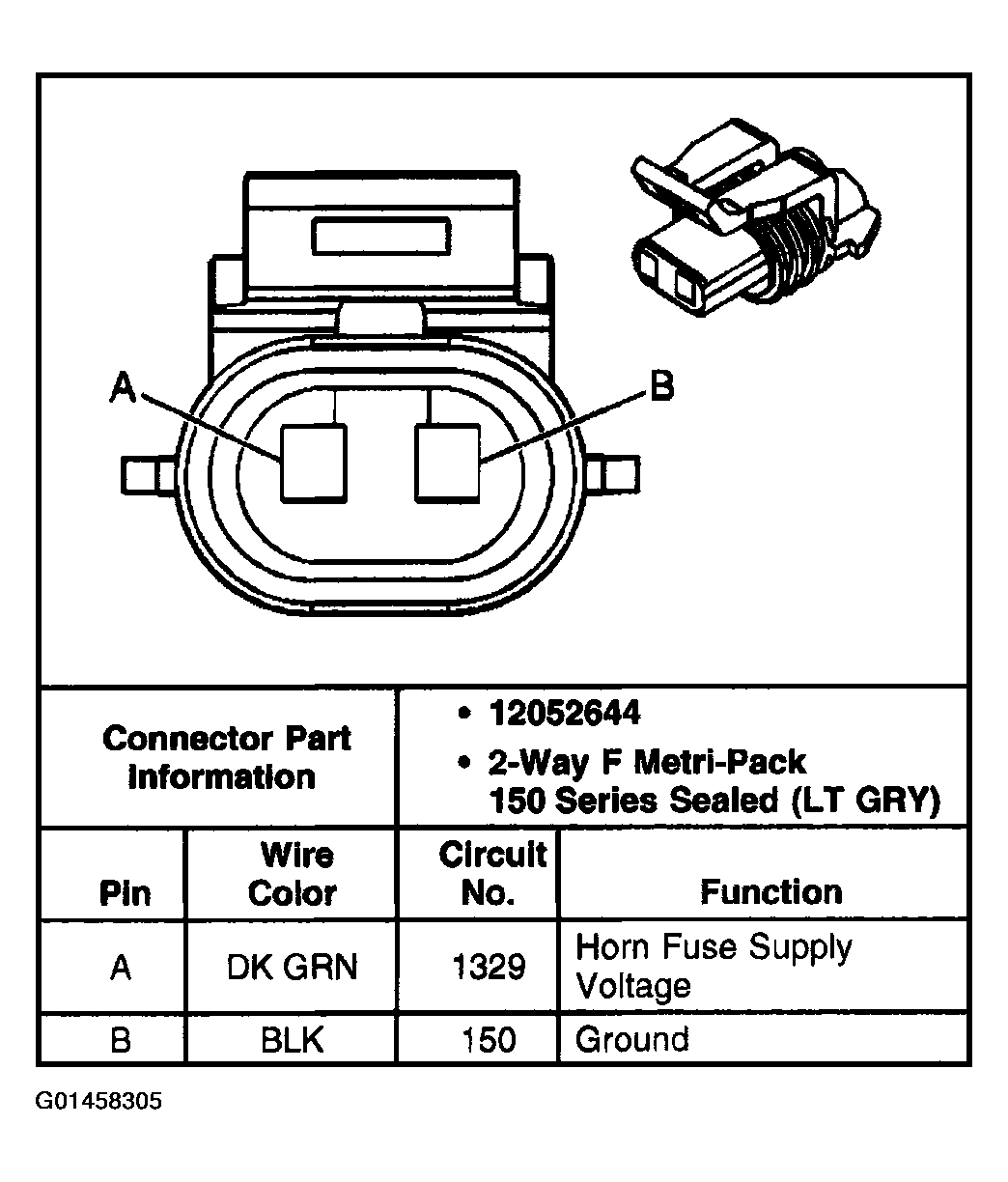

Fig 1: Horn-Right-High Note Connector End View
G01458305Courtesy of GENERAL MOTORS CORP.
