Instrument Panel Cluster Connector End View & Functions
Instrument Panel Cluster Connector End View & Functions

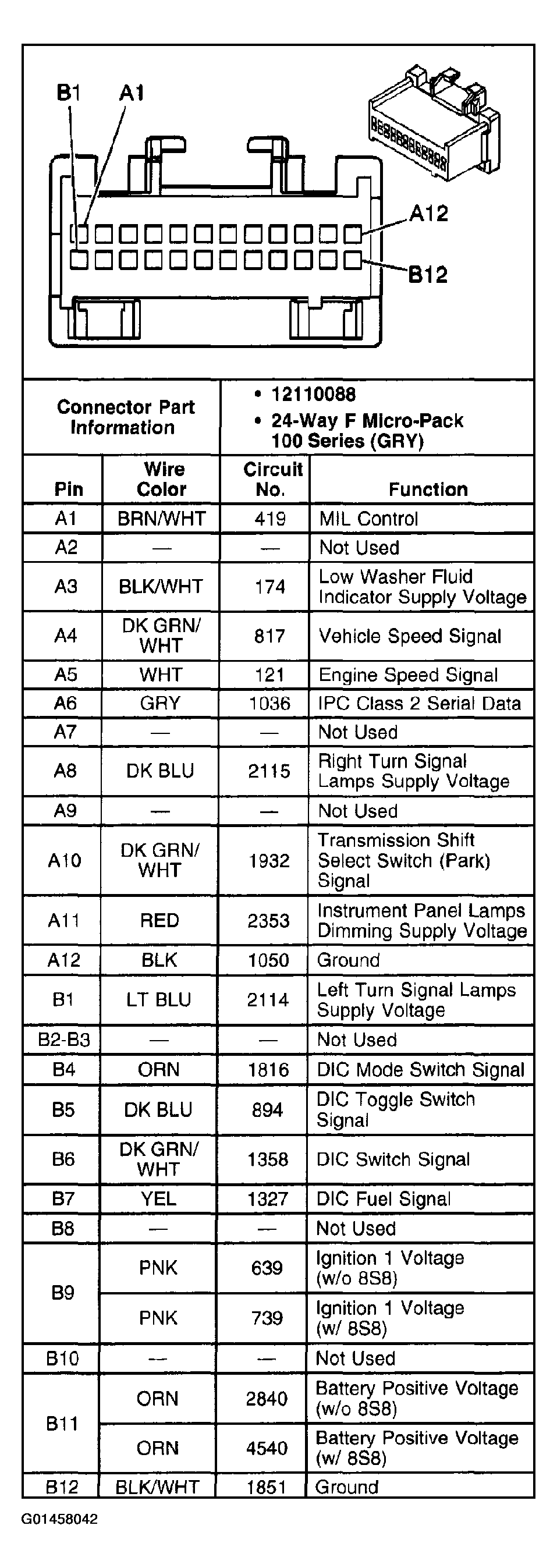

Fig 1: Instrument Panel Cluster Connector End View & Functions
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
