LF Suspension Position Sensor Connector End View

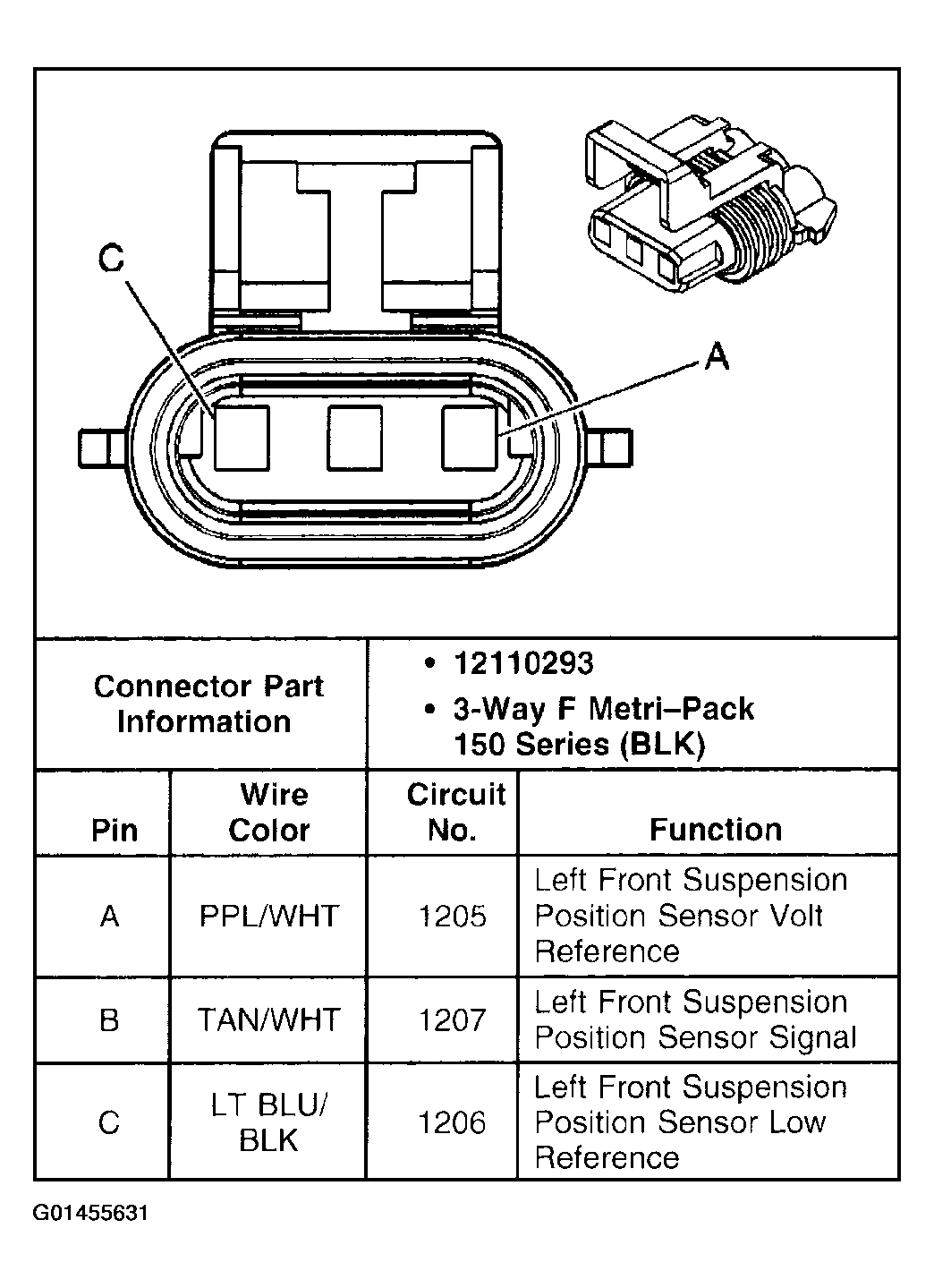

Fig 1: LF Suspension Position Sensor Connector End View
G01455631Courtesy of GENERAL MOTORS CORP.
