LR Suspension Position Sensor Connector End View
LR Suspension Position Sensor Connector End View

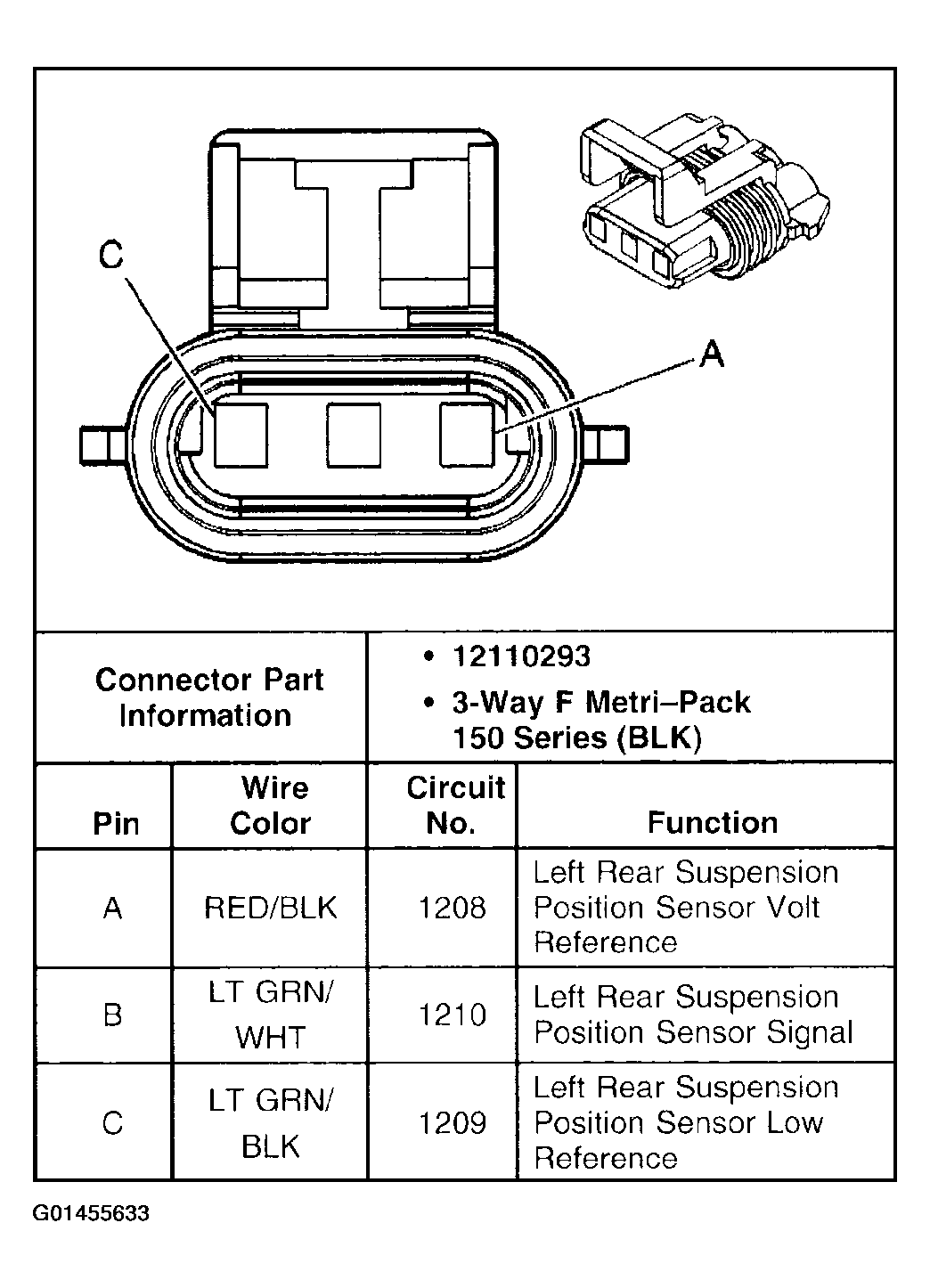

Fig 1: LR Suspension Position Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
