Memory Seat Module - Driver C2 Connector End View

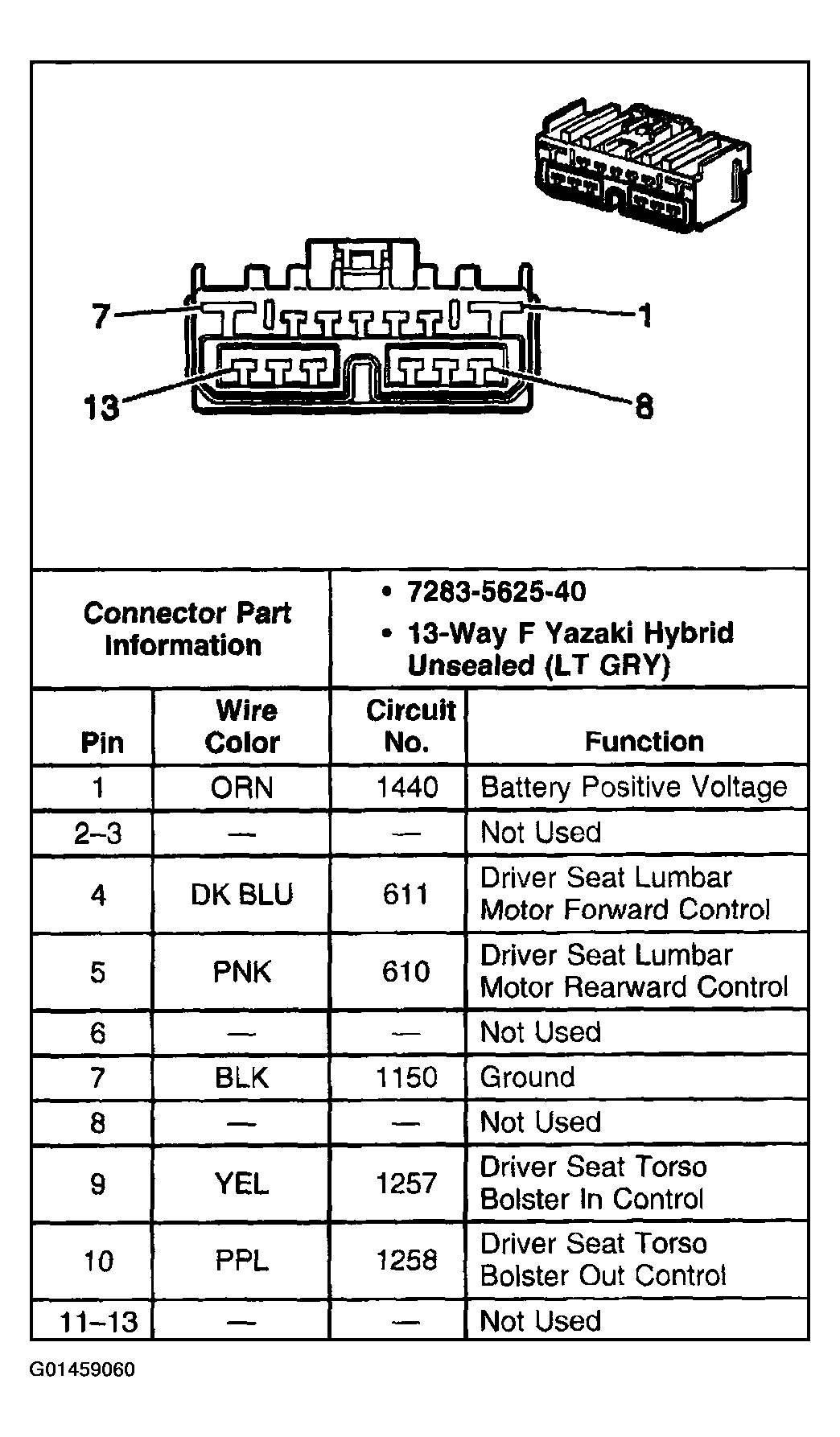

Fig 1: Memory Seat Module - Driver C2 Connector End View
G01459060Courtesy of GENERAL MOTORS CORP.
