Mode Actuator Connector End View

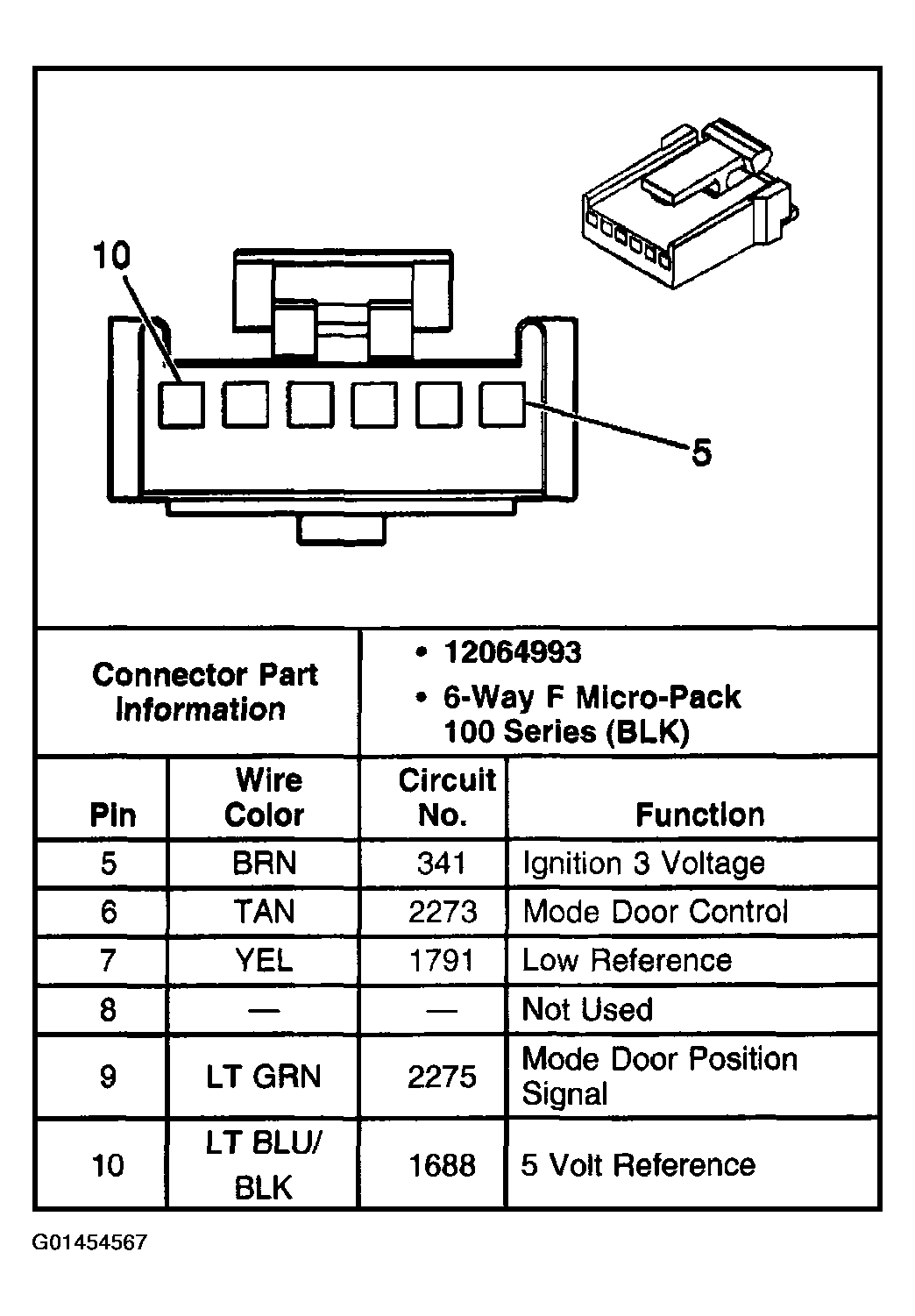

Fig 1: Mode Actuator Connector End View
G01454567Courtesy of GENERAL MOTORS CORP.

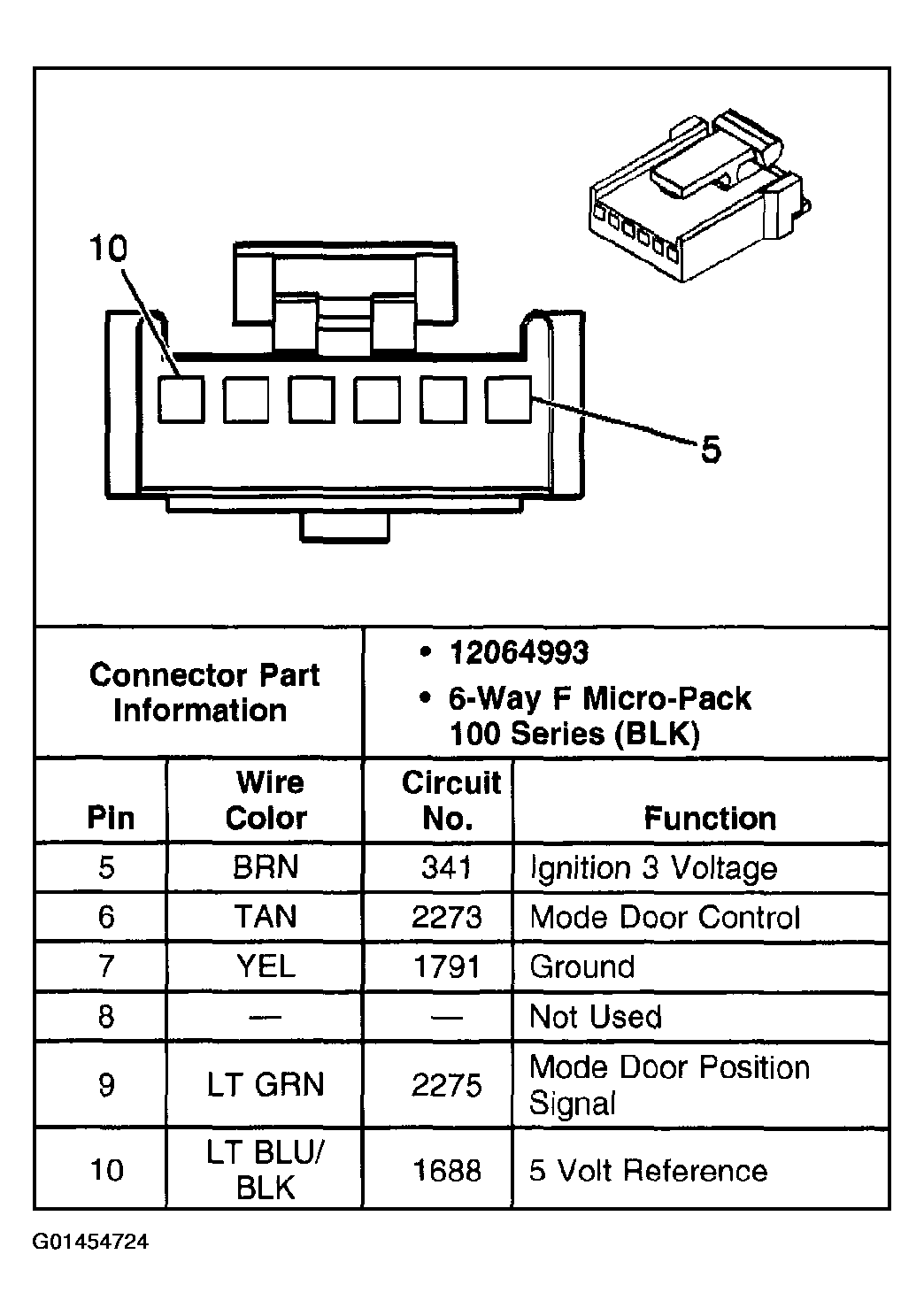

Fig 1: Mode Actuator Connector End View
G01454724Courtesy of GENERAL MOTORS CORP.
