Multifunction Accessory Switch Connector End View
Multifunction Accessory Switch Connector End View

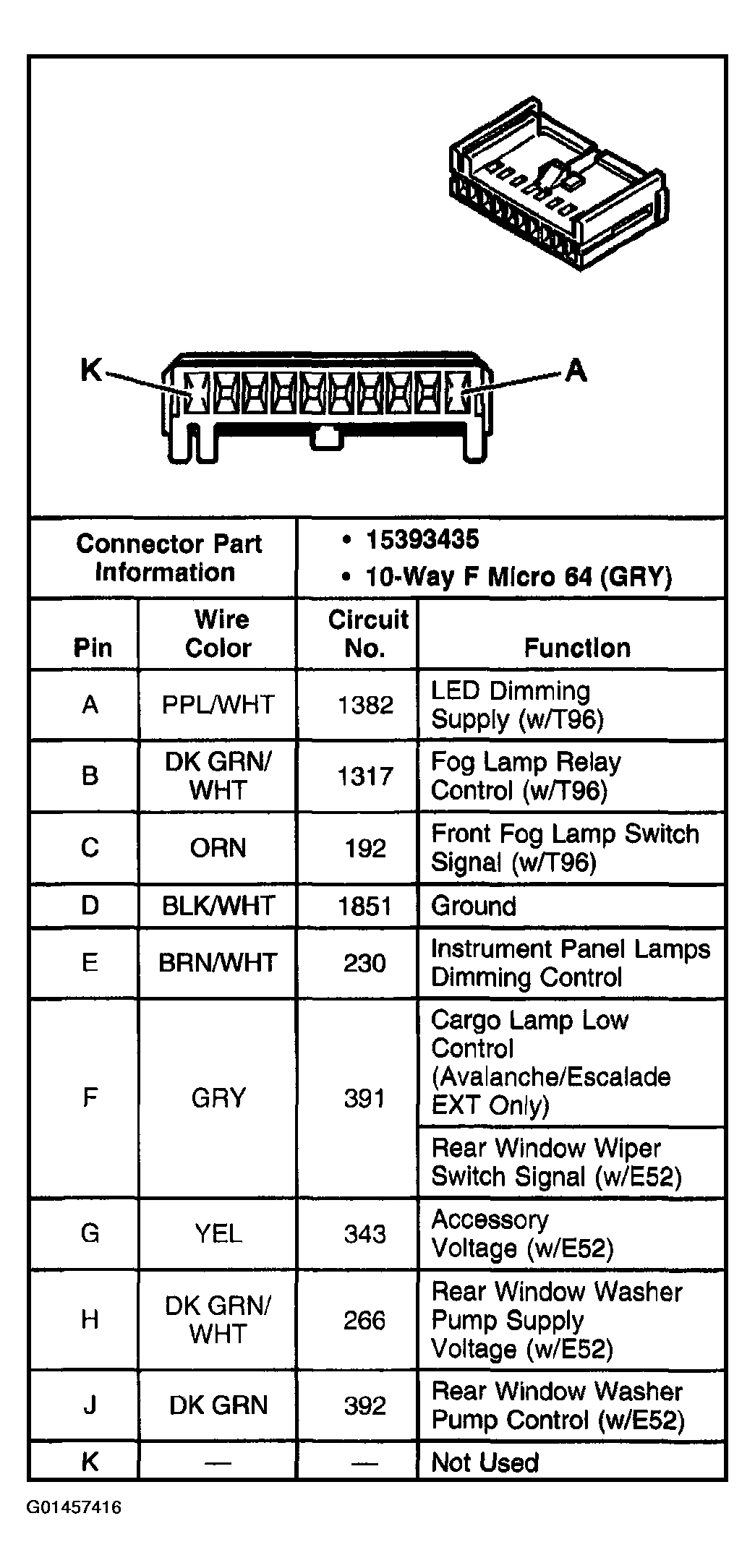

Fig 1: Multifunction Accessory Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
