Park/Neutral Position Switch - C1 Connector End View
Park/Neutral Position Switch - C1 Connector End View

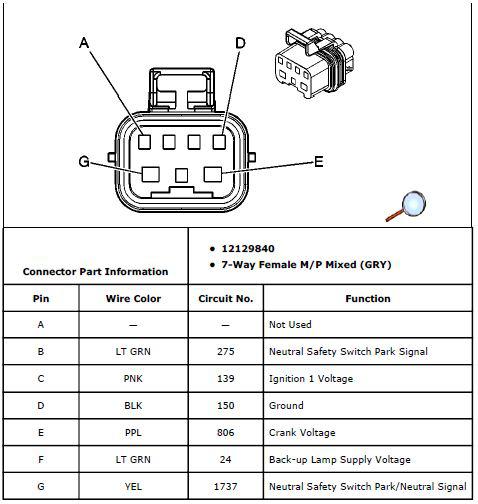

Fig 1: Park/Neutral Position Switch - C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
