Powertrain Control Module (PCM) - C2 Connector End View (1 Of 3)

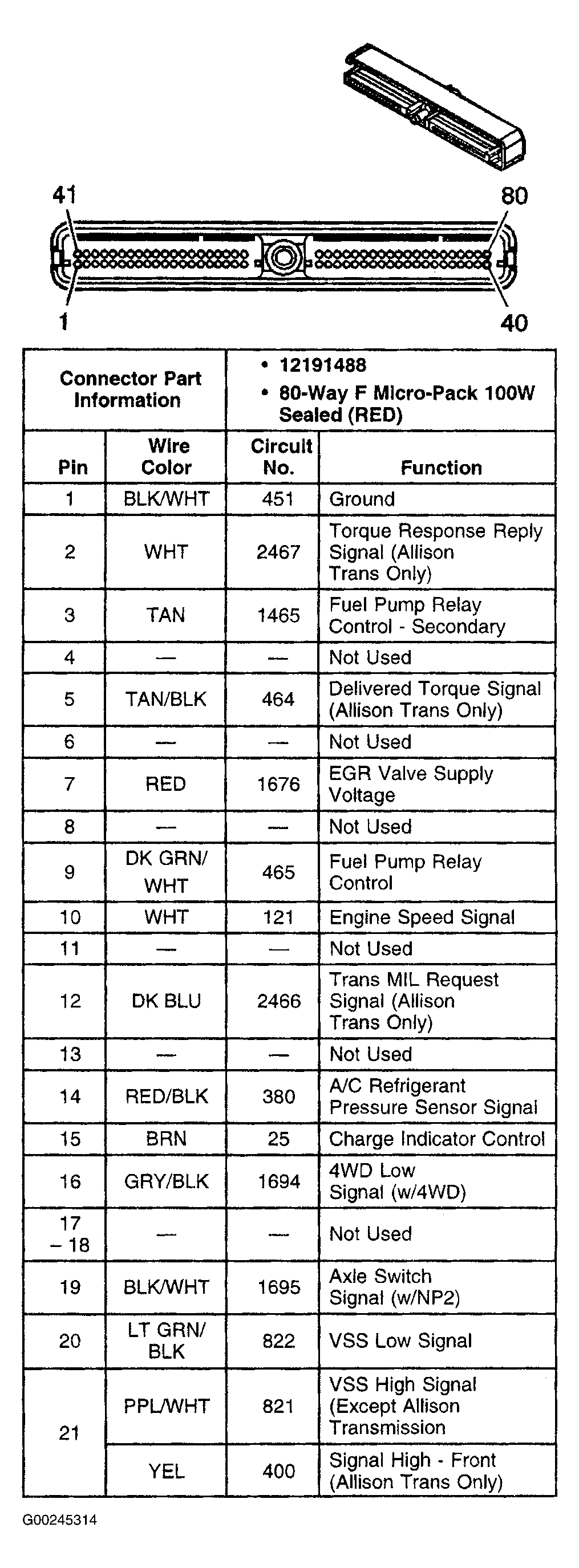

Fig 1: Powertrain Control Module (PCM) - C2 Connector End View (1 Of 3)
G00245314Courtesy of GENERAL MOTORS CORP.
