Precharge Motor Assembly Connector End View
Precharge Motor Assembly Connector End View

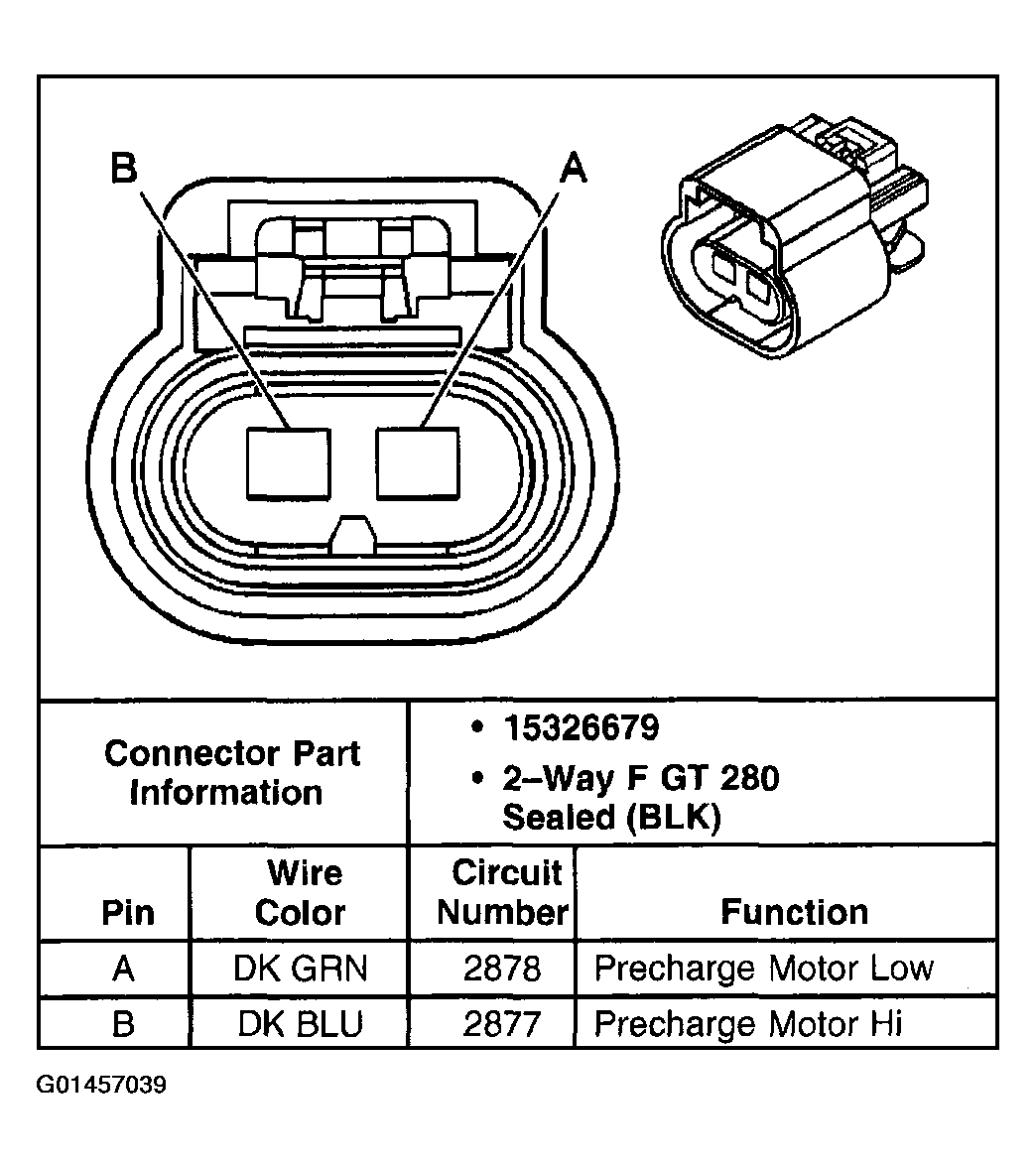

Fig 1: Precharge Motor Assembly Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
