RF Suspension Position Sensor Connector End View
RF Suspension Position Sensor Connector End View

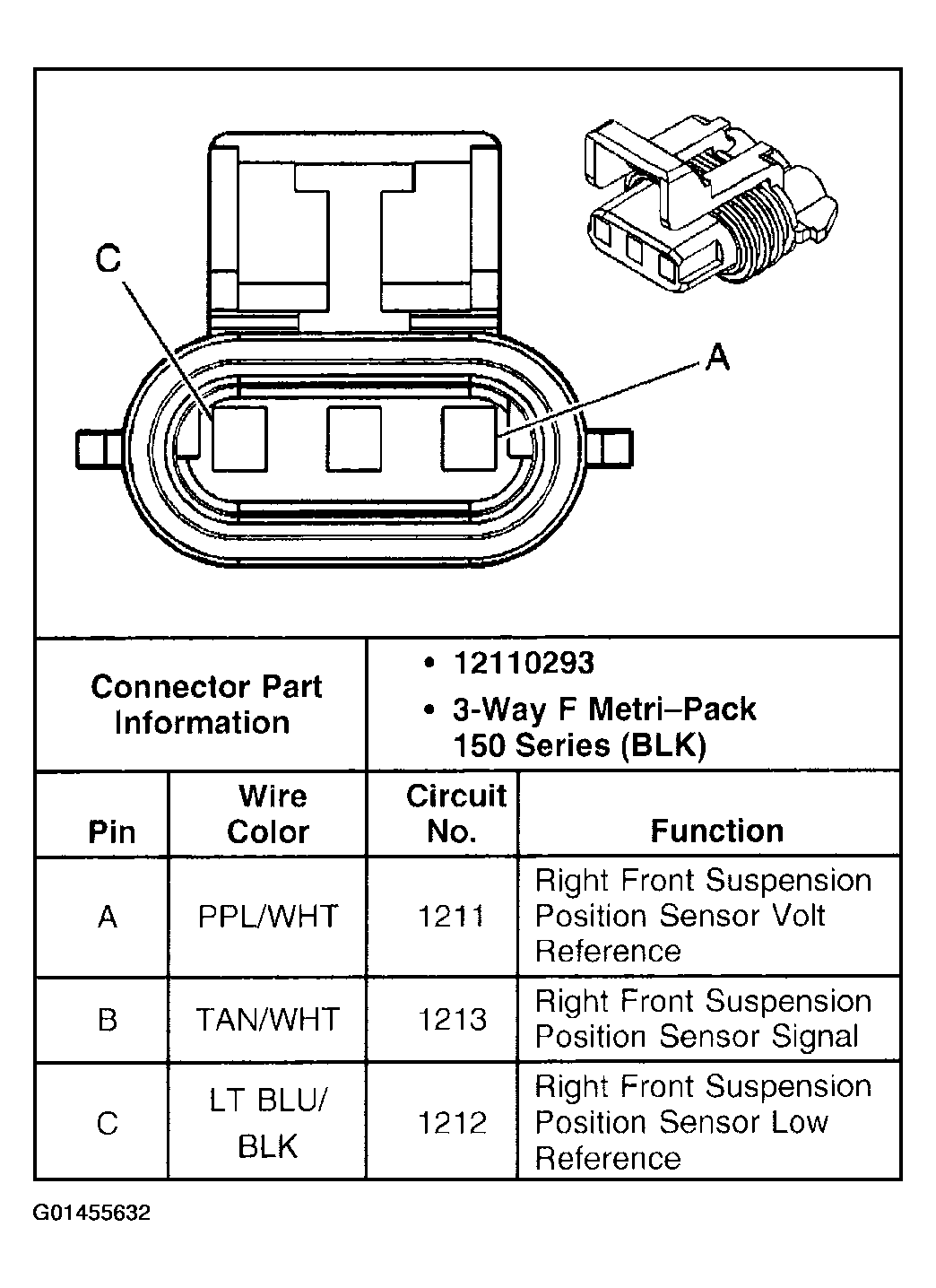

Fig 1: RF Suspension Position Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
