RR Suspension Position Sensor Connector End View

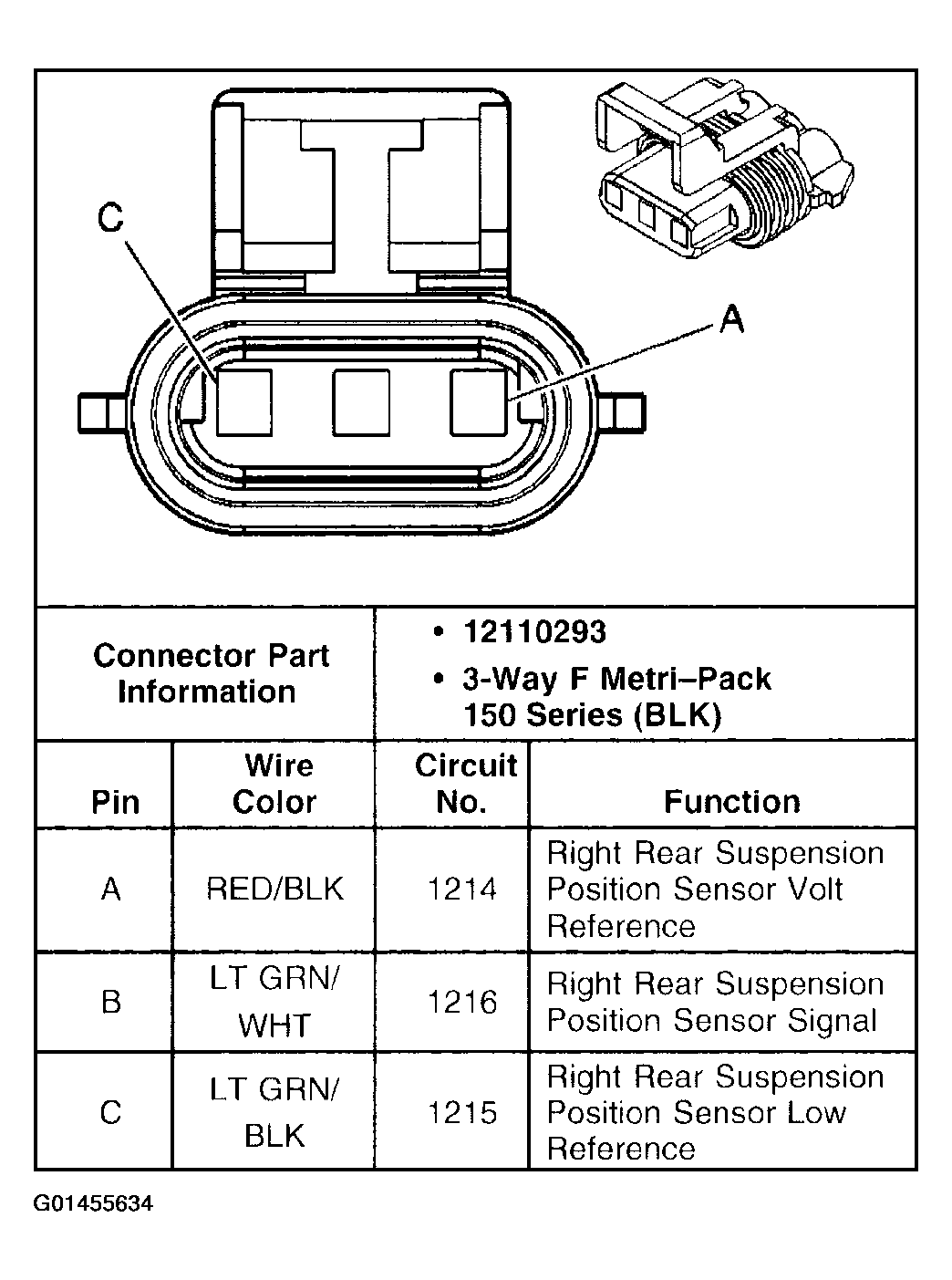

Fig 1: RR Suspension Position Sensor Connector End View
G01455634Courtesy of GENERAL MOTORS CORP.
