Rear Wheel Position Sensor Connector End View
Rear Wheel Position Sensor Connector End View

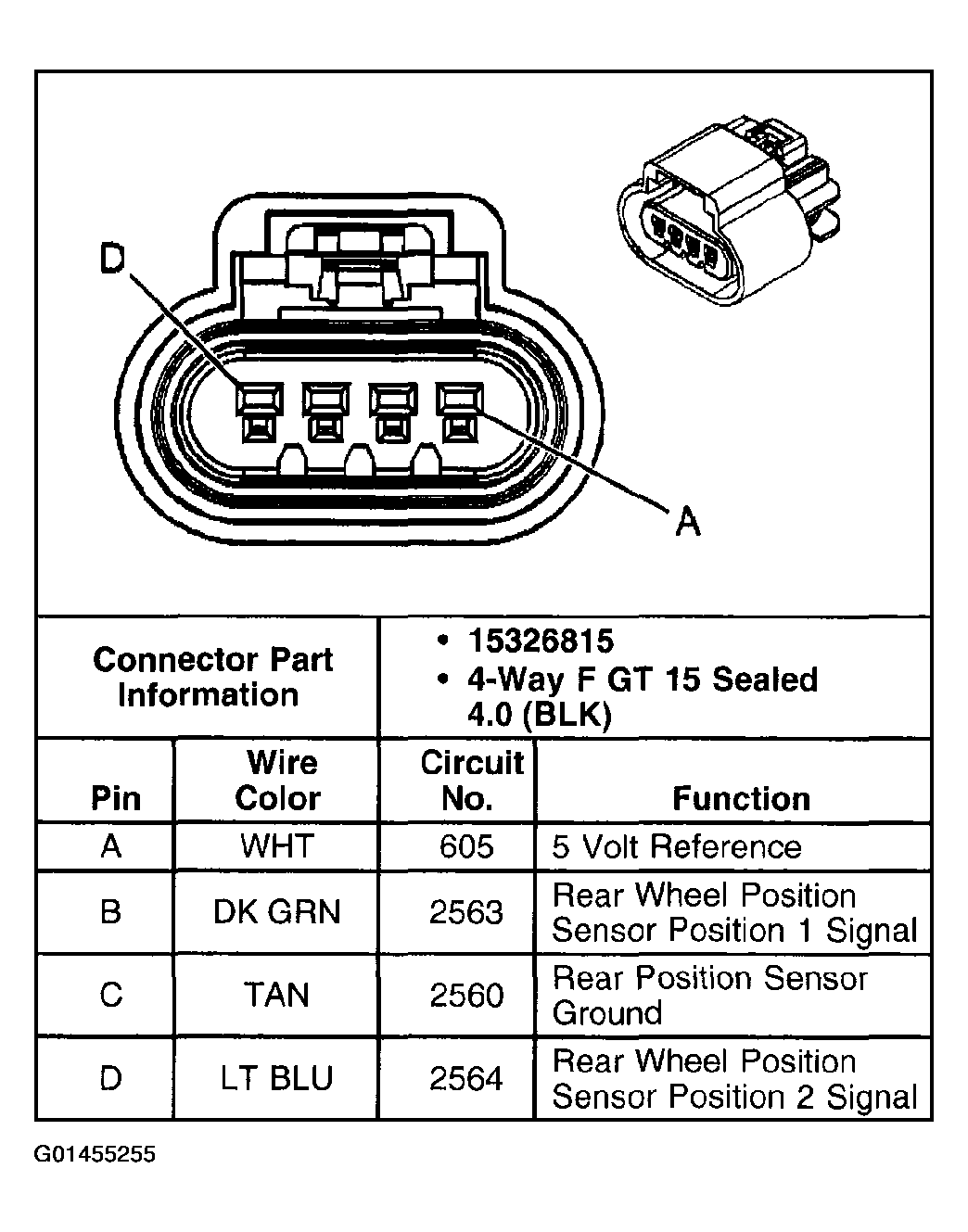

Fig 1: Rear Wheel Position Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
