Rear Wheel Steering Mode Select Switch Connector End View
Rear Wheel Steering Mode Select Switch Connector End View

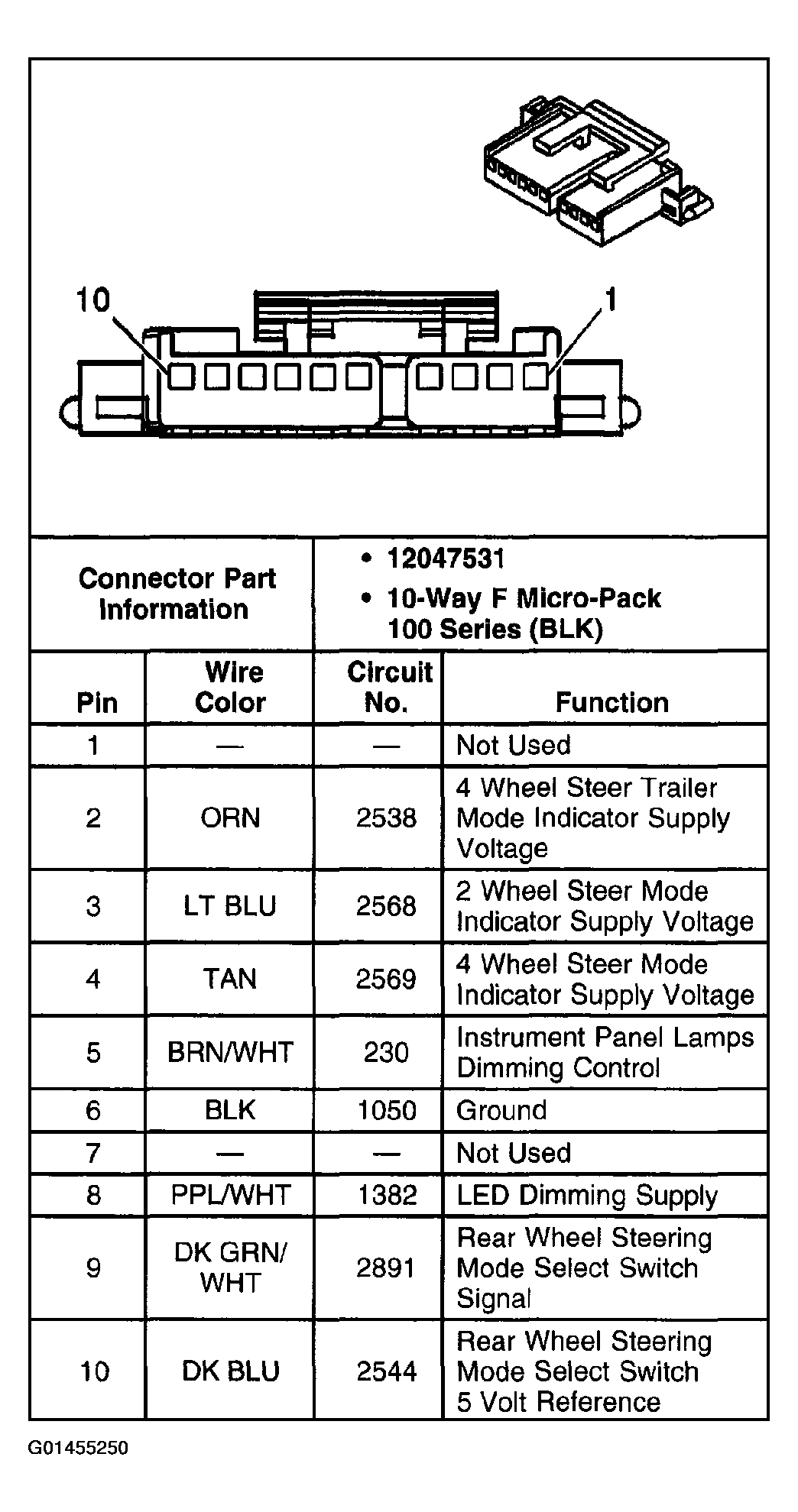

Fig 1: Rear Wheel Steering Mode Select Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
