Rear Wheel Steering Module Connector End View - C4

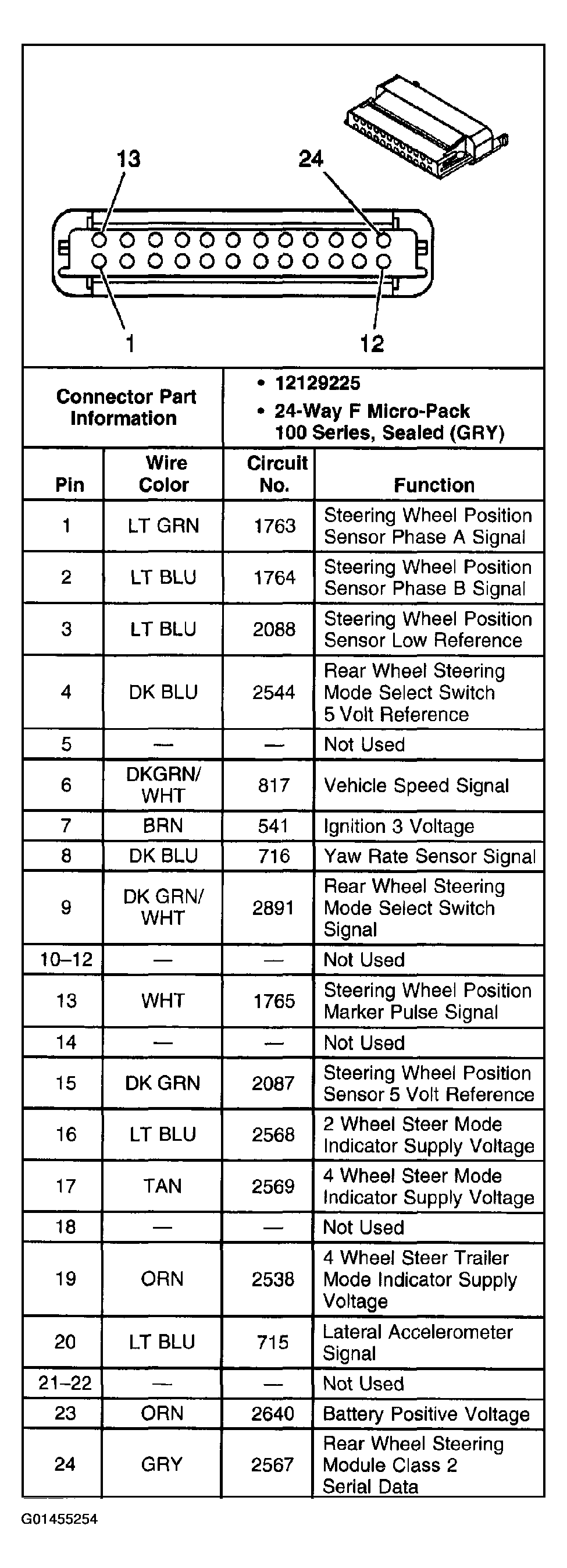

Fig 1: Rear Wheel Steering Module Connector End View - C4
G01455254Courtesy of GENERAL MOTORS CORP.
