Steering Wheel Speed/Position Sensor Connector End View
Steering Wheel Speed/Position Sensor Connector End View

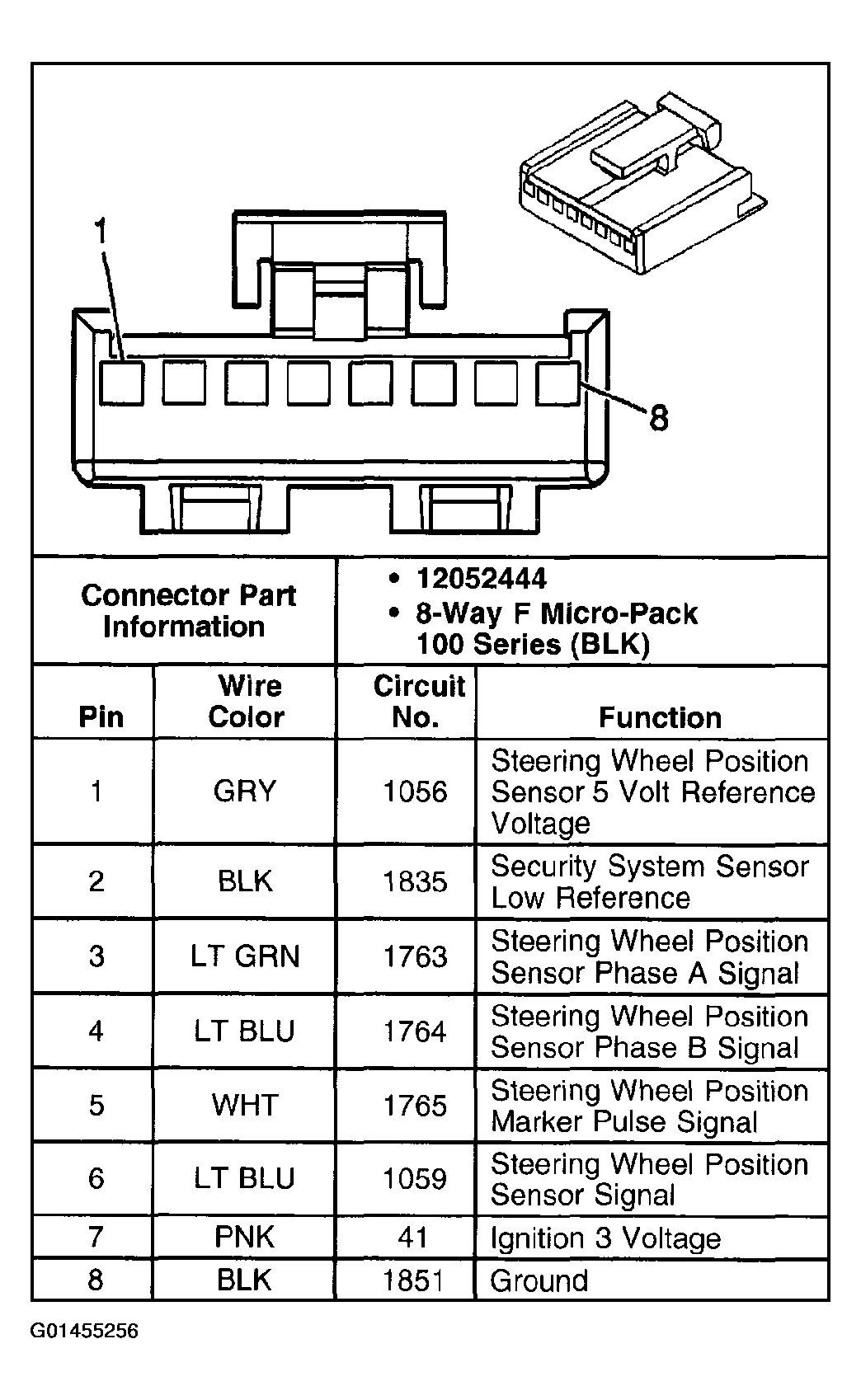

Fig 1: Steering Wheel Speed/Position Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
