Sunroof Relay Connector End View
Sunroof Relay Connector End View

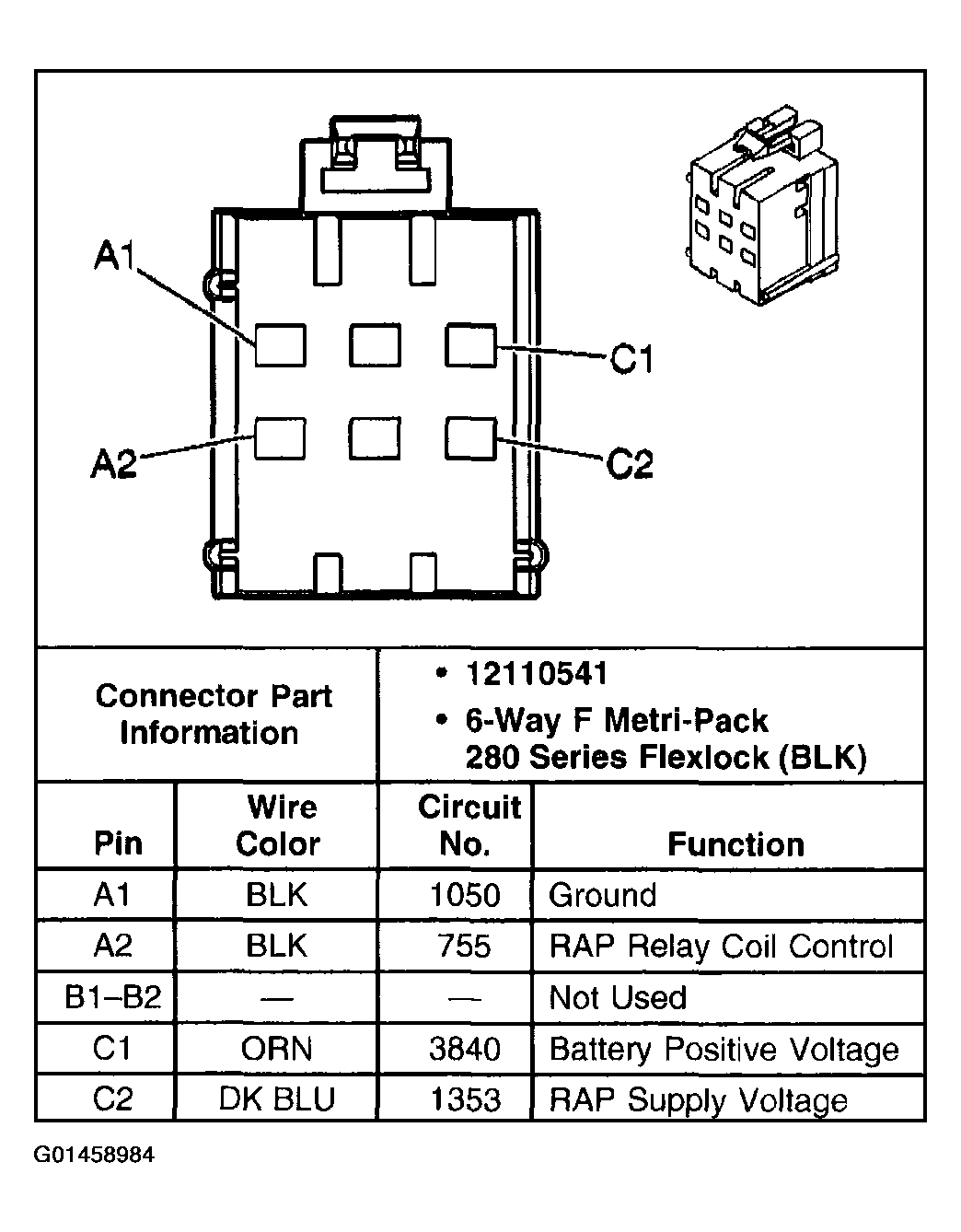

Fig 1: Sunroof Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
