Throttle Actuator Control (TAC) Module C2 Connector End View
Throttle Actuator Control (TAC) Module C2 Connector End View

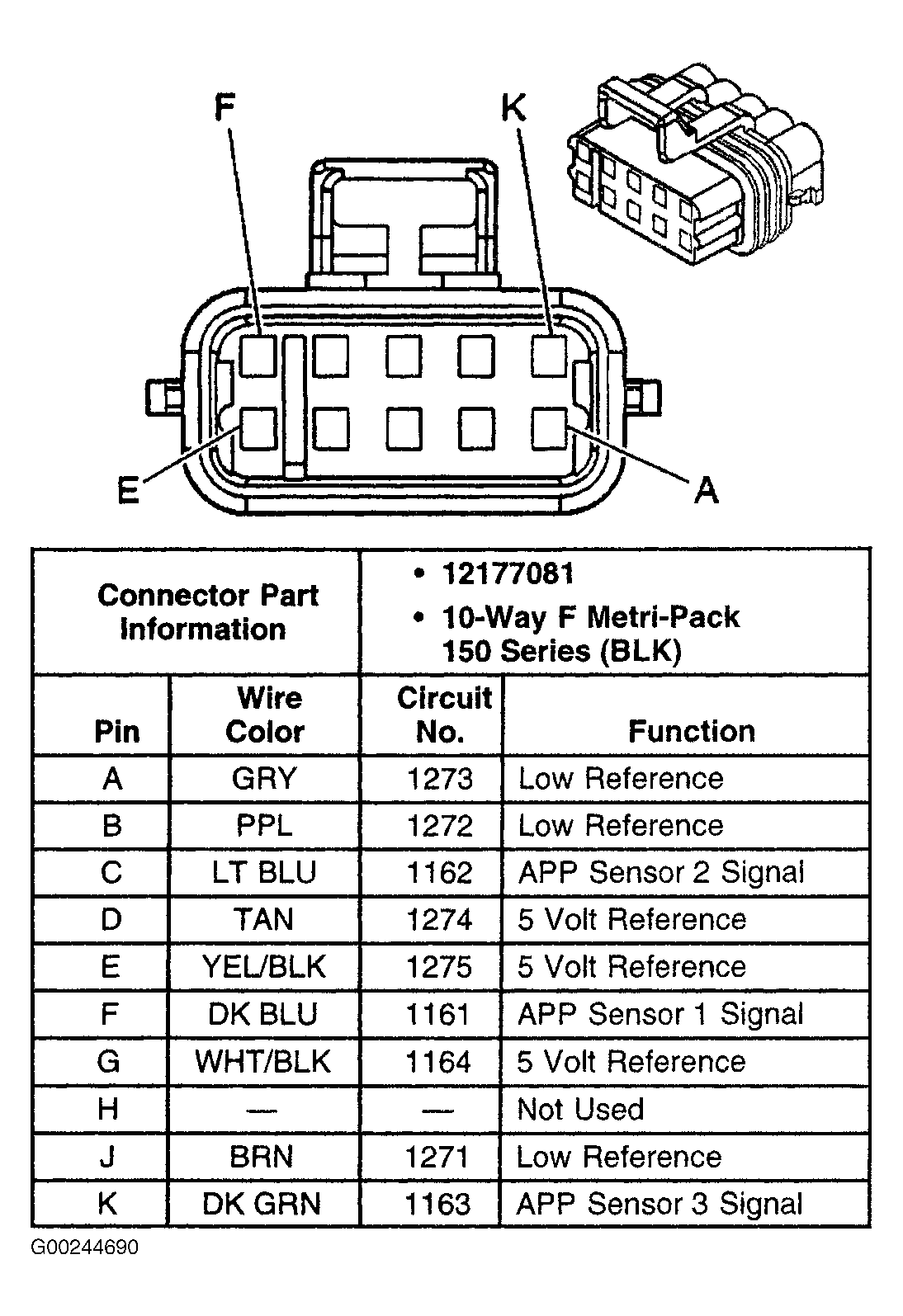

Fig 1: Throttle Actuator Control (TAC) Module C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
