Traction Control Switch (w/JL4) Connector End View
Traction Control Switch (w/JL4) Connector End View

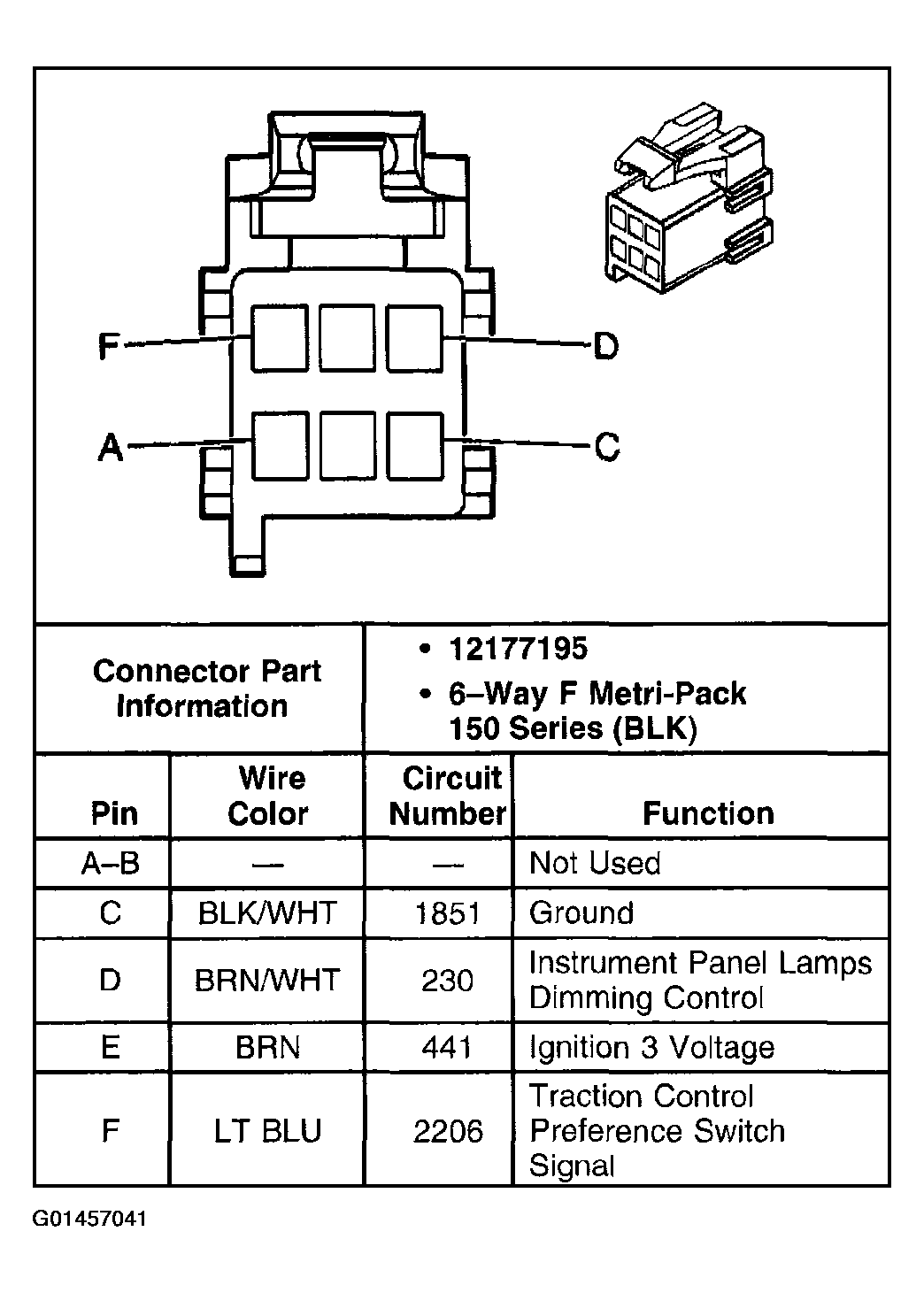

Fig 1: Traction Control Switch (w/JL4) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
