Transfer Case - Encoder Motor Pin Connector End View

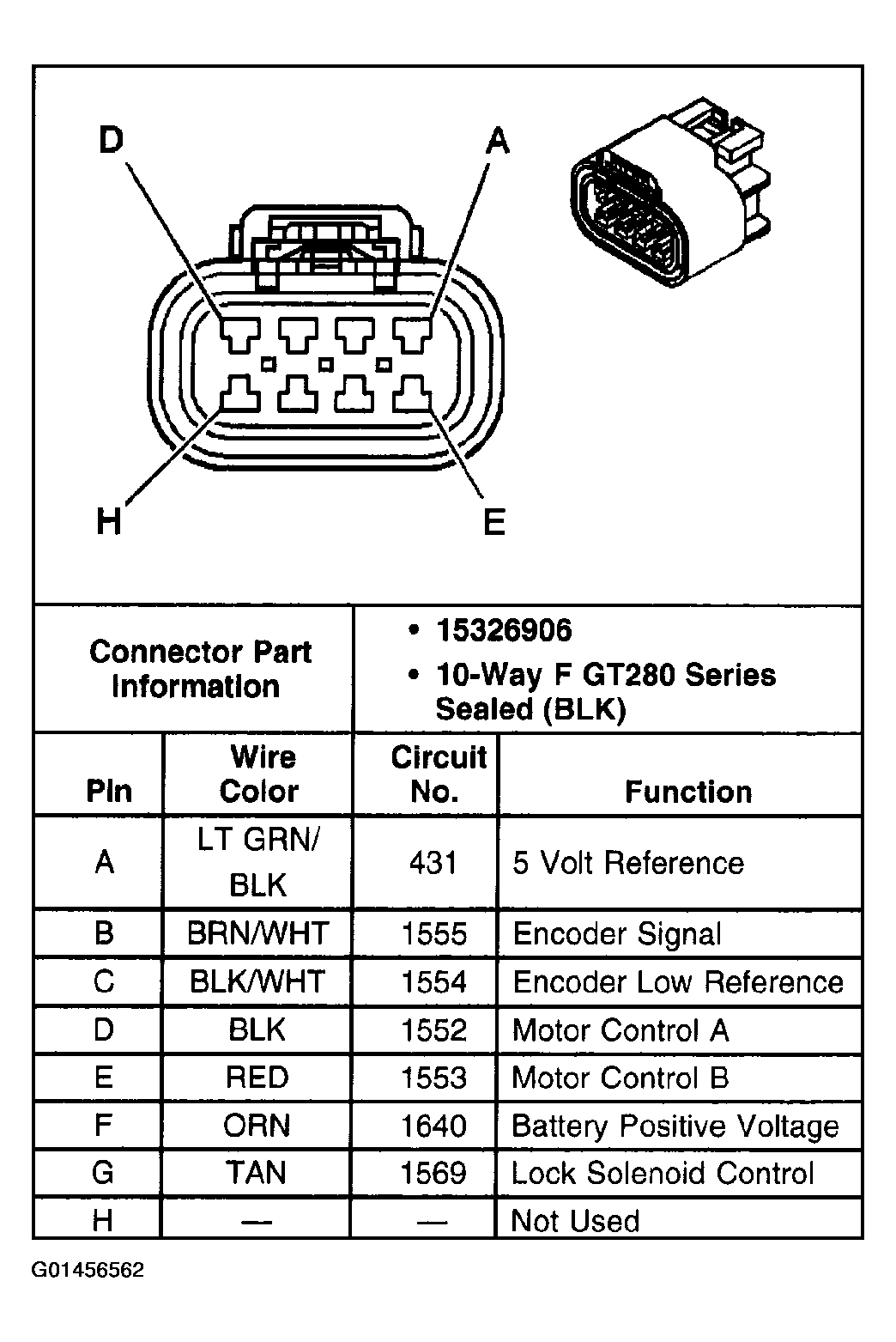

Fig 1: Transfer Case - Encoder Motor Pin Connector End View
G01456562Courtesy of GENERAL MOTORS CORP.
