Transfer Case Shift Control Module - C3 Pin Connector End View
Transfer Case Shift Control Module - C3 Pin Connector End View

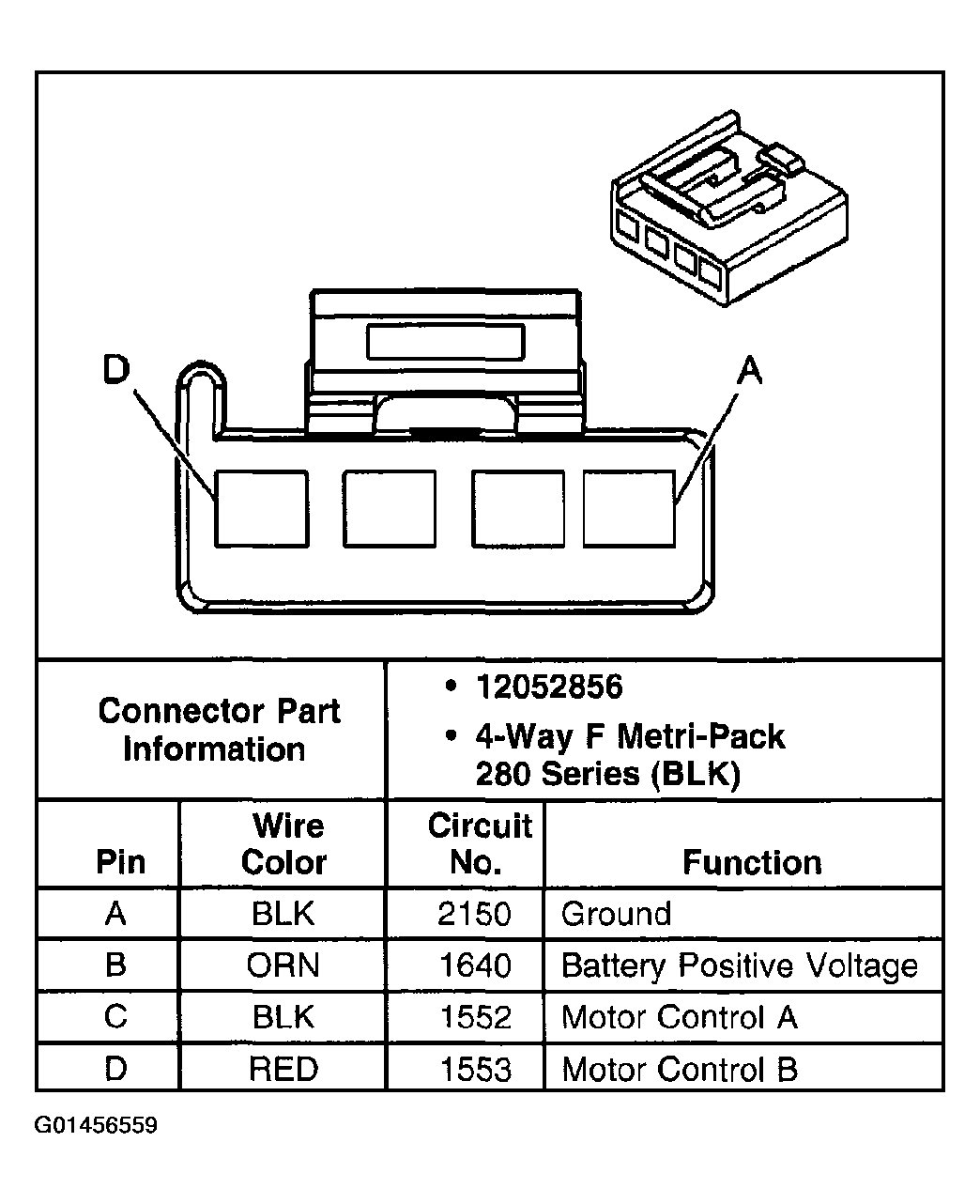

Fig 1: Transfer Case Shift Control Module - C3 Pin Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
