Window Motor - Driver Connector End View
Window Motor - Driver Connector End View

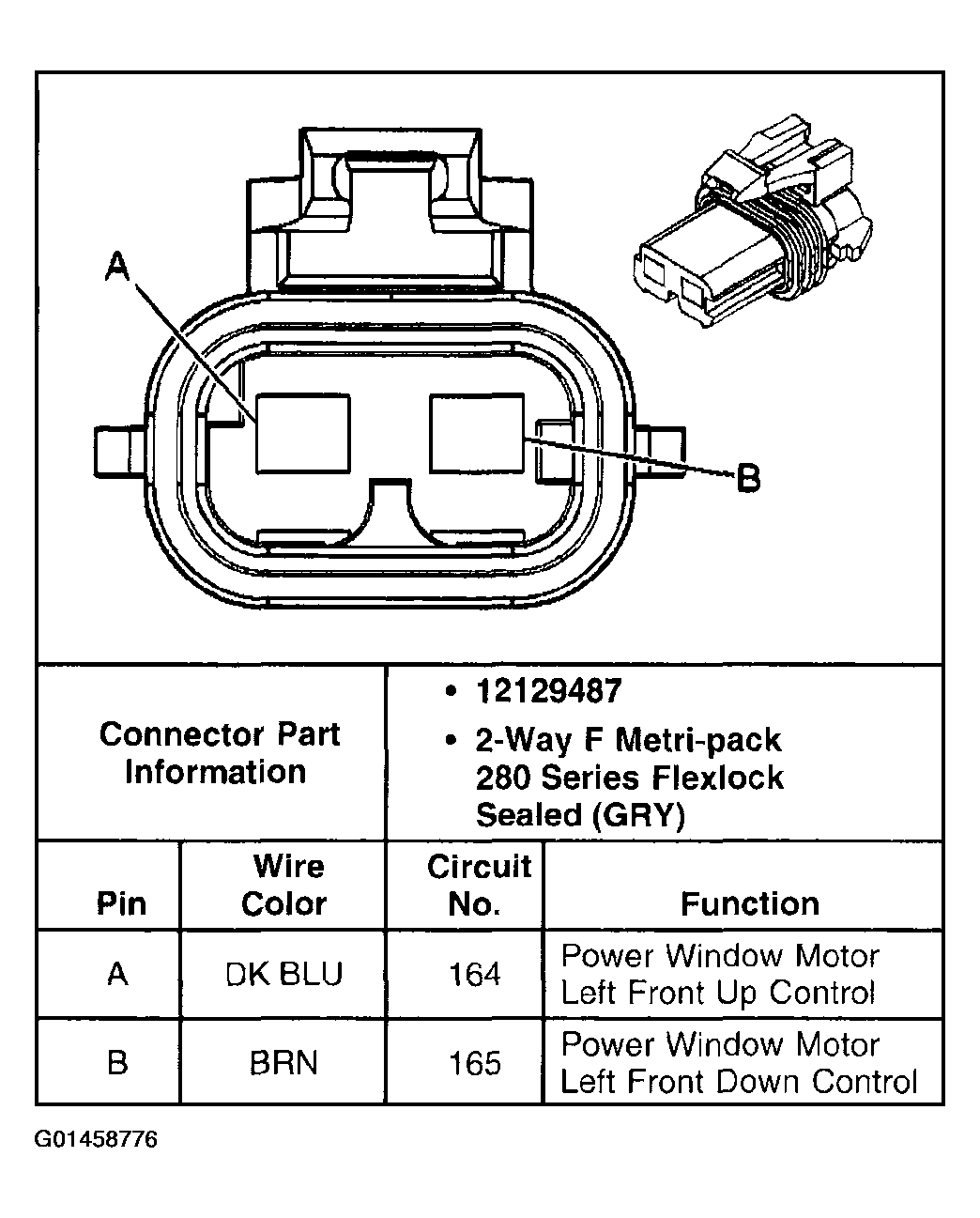

Fig 1: Window Motor - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
