Window Switch - LR Connector End View
Window Switch - LR Connector End View

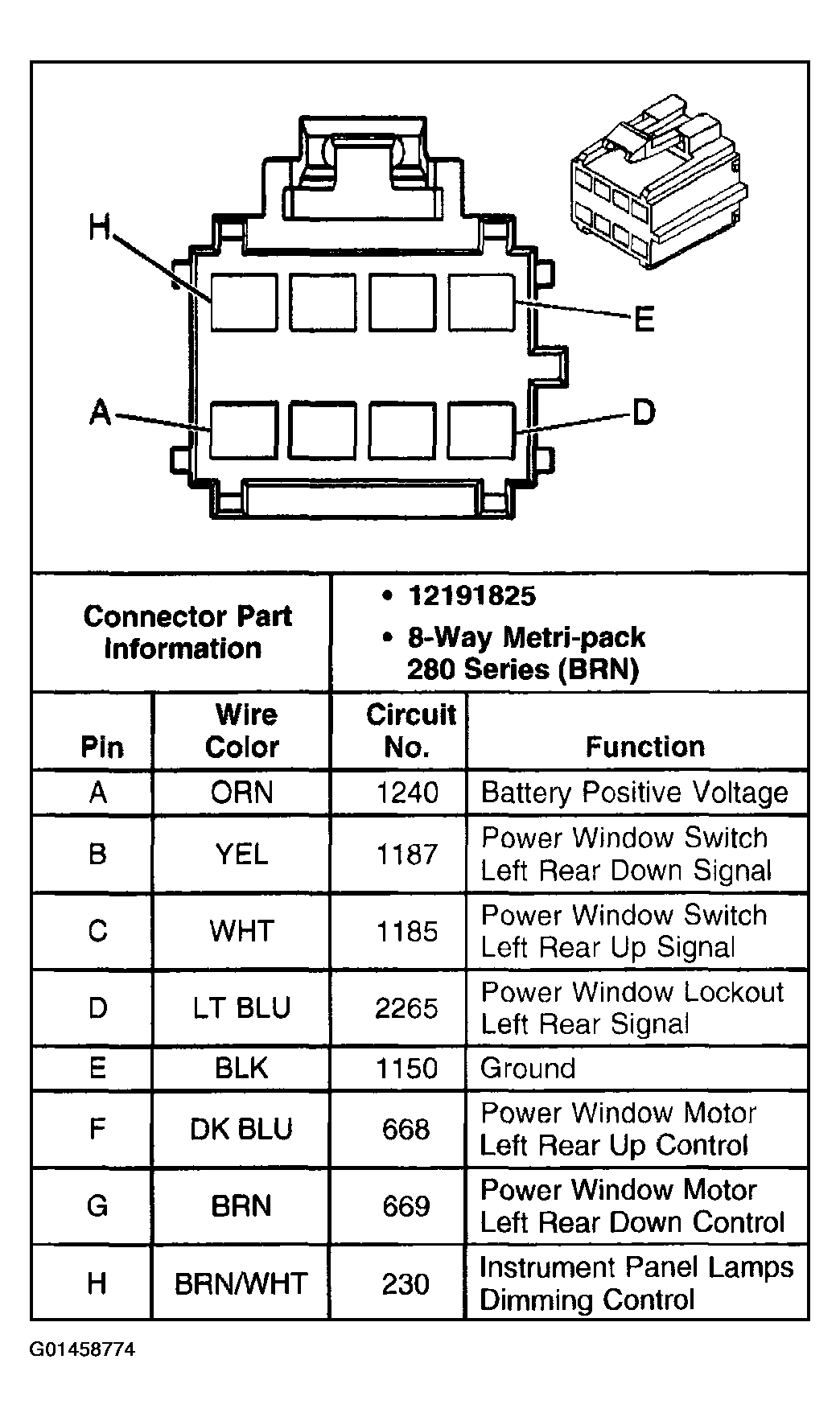

Fig 1: Window Switch - LR Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
