OEM Connector End Views
›
Connector End Views
›
YAW And Lateral Acceleration Sensor Connector End View
YAW And Lateral Acceleration Sensor Connector End View

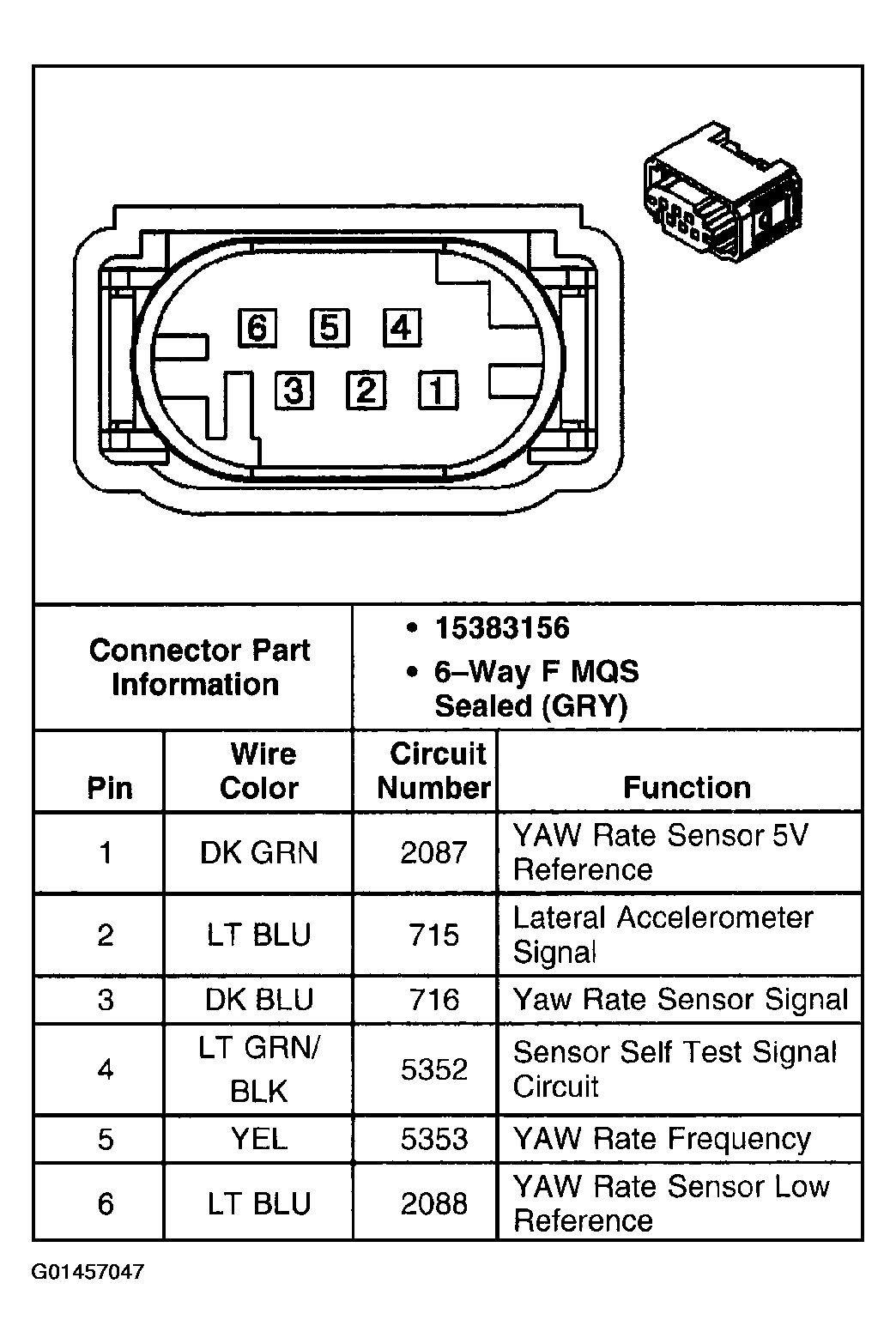

Fig 1: YAW And Lateral Acceleration Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
