Left Instrument Panel Fuse Block
NOTE:

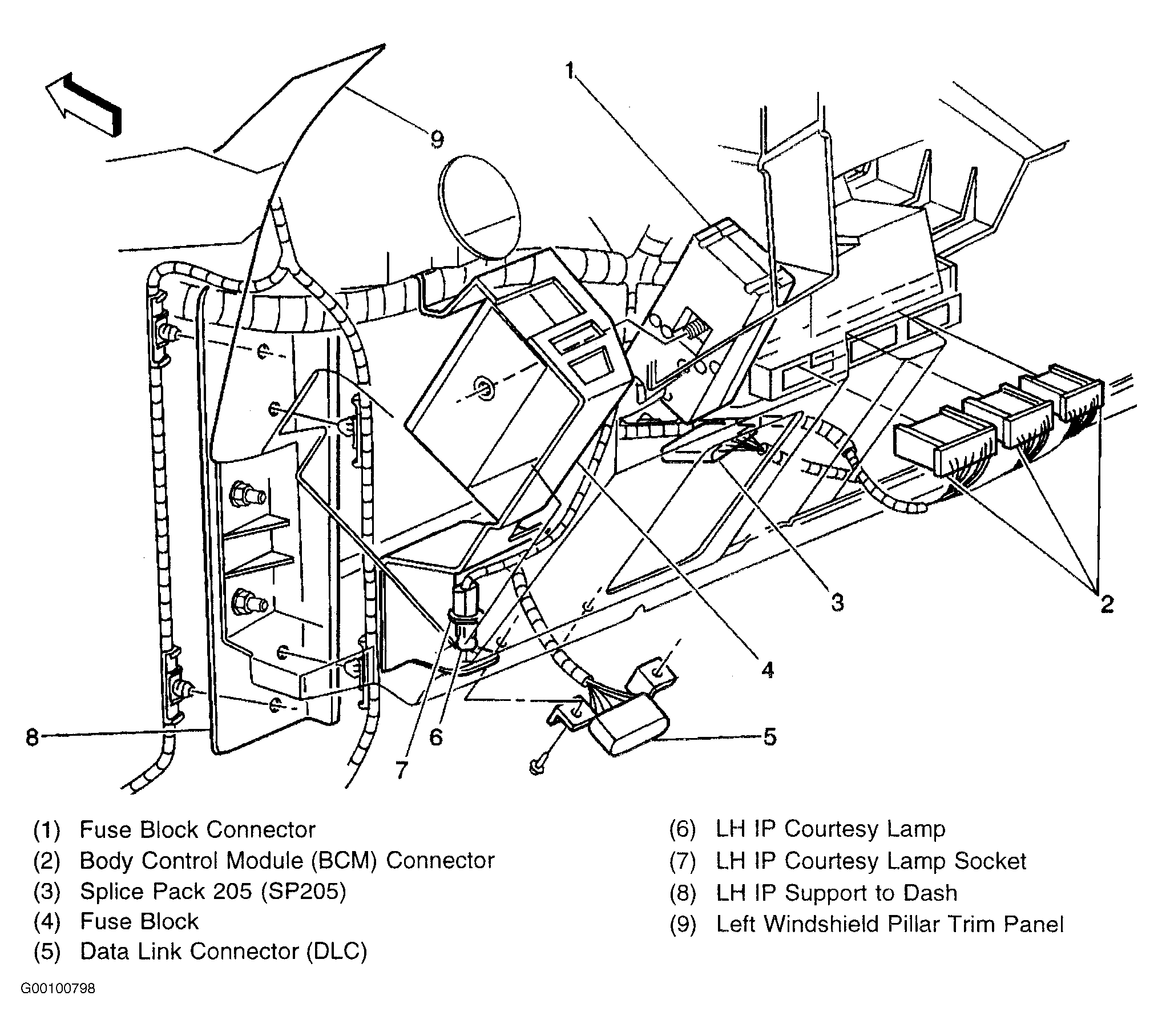

Instrument Panel (I/P) fuse block (left) is located at the left side of the I/P behind the access panel. See Fig 1.

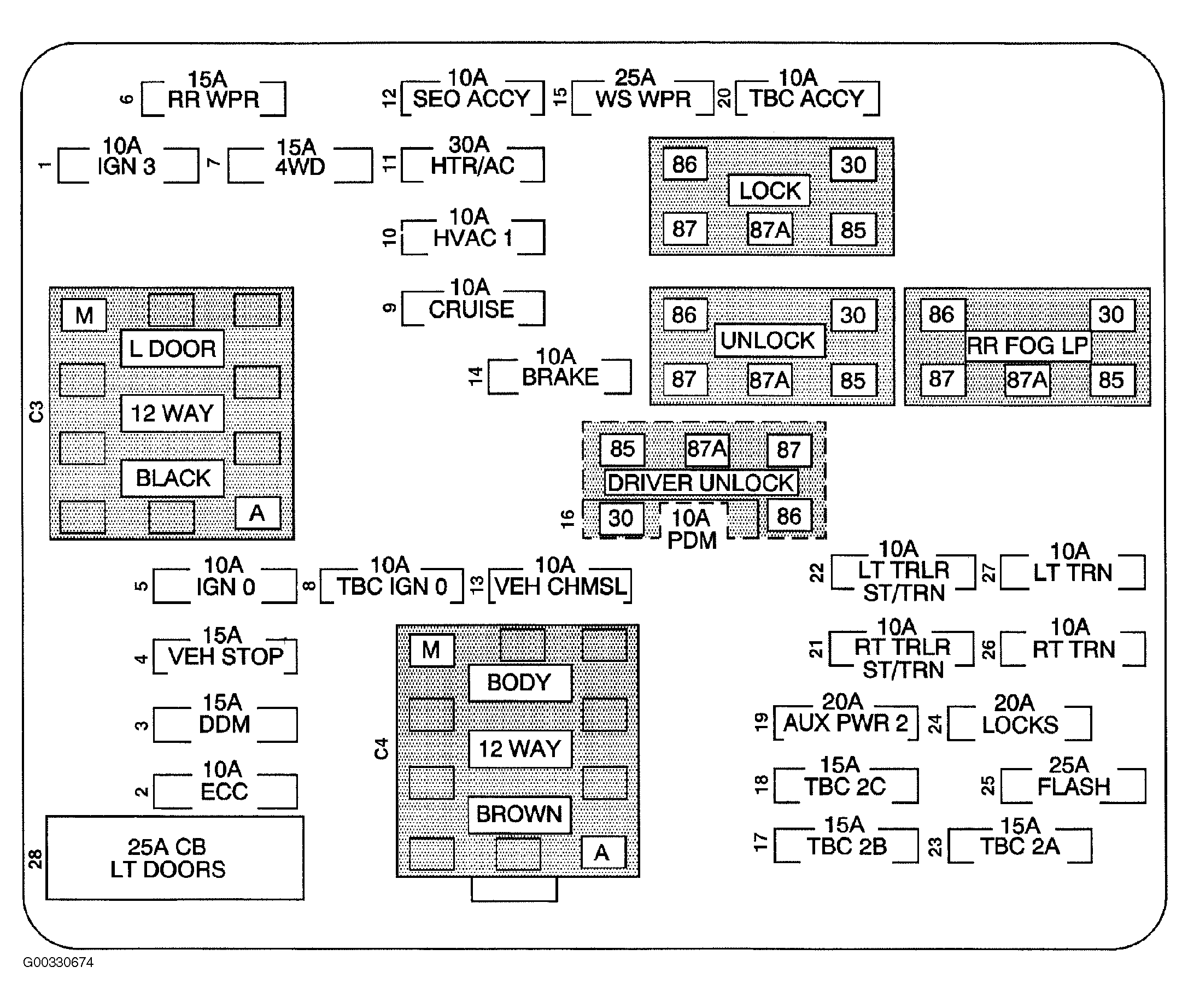

LEFT INSTRUMENT PANEL FUSE BLOCK LEGEND
| Fuse # | Fuse | Rating | Description |
|---|---|---|---|
| 1 | IGN 3 Fuse | 10A | HVAC Components, Electronic Suspension Control (ESC) Components, Heated Seat Modules-Rear, Rear Wheel Steering |
| 2 | ECC Fuse | 10A | HVAC Control Assembly-Rear Auxiliary |
| 3 | DDM Fuse | 15A | Driver Door Module (DDM) |
| 4 | VEH STOP Fuse | 15A | Tail/Stop and Turn Signal Lamps-Rear, Throttle Actuator Control |
| 5 | IGN 0 Fuse | 10A | Passlock Sensor, Automatic Transmission, Powertrain Control |
| 6 | RR WPR Fuse | 15A | Rear Wiper/Washer Switch |
| 7 | 4WD Fuse | 15A | Front Axle Actuator, Transfer Case Shift Control Switch |
| 8 | TBC IGN 0 Fuse | 10A | Body Control Module (BCM) |
| 9 | CRUISE Fuse | 10A | Cruise Control Switch, Steering Wheel Speed/Position Sensor |
| 10 | HVAC 1 Fuse | 10A | HVAC Control Module, HVAC Actuators |
| 11 | HTR/AC Fuse | 30A | HVAC Control Module |
| 12 | SEO ACCY Fuse | 10A | Upfitter Provisions |
| 13 | VEH CHMSL Fuse | 10A | Center High Mounted Stop Lamp (CHMSL) |
| 14 | BRAKE Fuse | 10A | Stop Lamp Switch, Electronic Brake Control Module (EBCM), Traction Control Switch |
| 15 | WS WPR Fuse | 25A | Windshield Wiper Motor Module |
| 16 | PDM Fuse | 10A | Front Passenger Door Module (FPDM) |
| 17 | TBC 2B Fuse | 15A | Body Control Module (BCM) |
| 18 | TBC 2C Fuse | 15A | Body Control Module (BCM) |
| 19 | AUX PWR 2 Fuse | 20A | Accessory Power Outlet-D-Pillar |
| 20 | TBC ACCY Fuse | 10A | Body Control Module (BCM) |
| 21 | RT TRLR ST/TRN Fuse | 10A | Trailer Wiring |
| 22 | LT TRLR ST/TRN Fuse | 10A | Trailer Wiring |
| 23 | TBC 2A Fuse | 15A | Body Control Module (BCM) |
| 24 | LOCKS Fuse | 20A | Door Lock/Unlock Relays |
| 25 | FLASH Fuse | 25A | Turn Signal/Hazard Flasher Module |
| 26 | RT TRN Fuse | 10A | Turn Signal Lamps-Right, Marker Lamps-Right, Front Passenger Door Module (FPDM), Instrument Panel Cluster (IPC) |
| 27 | LT TRN Fuse | 10A | Turn Signal Lamps-Left, Marker Lamps-Left, Driver Door Module (DDM), Instrument Panel Cluster (IPC) |
| LOCK Relay | - | Door Lock Actuator - Liftgate, Door Latch Assembly - LR/RR | |
| L DOOR 12 WAY-BLACK | - | Fuse Block - Left I/P C4 (Driver Door Harness) | |
| UNLOCK Relay | - | Door Lock Actuator - Liftgate, Door Latch Assembly - LR/RR | |
| RR FOG LP Relay | - | Rear Fog Lamps (Export) | |
| DRIVER UNLOCK Relay | - | Not Used | |
| BODY 12-WAY BROWN | - | Fuse Block - Left l/P C3 (Body Harness) | |
| CB LT DOORS | 25A | Window Switch - LR, Driver Door Module (DDM) |
