UNDERHOOD Fuse Block
NOTE:

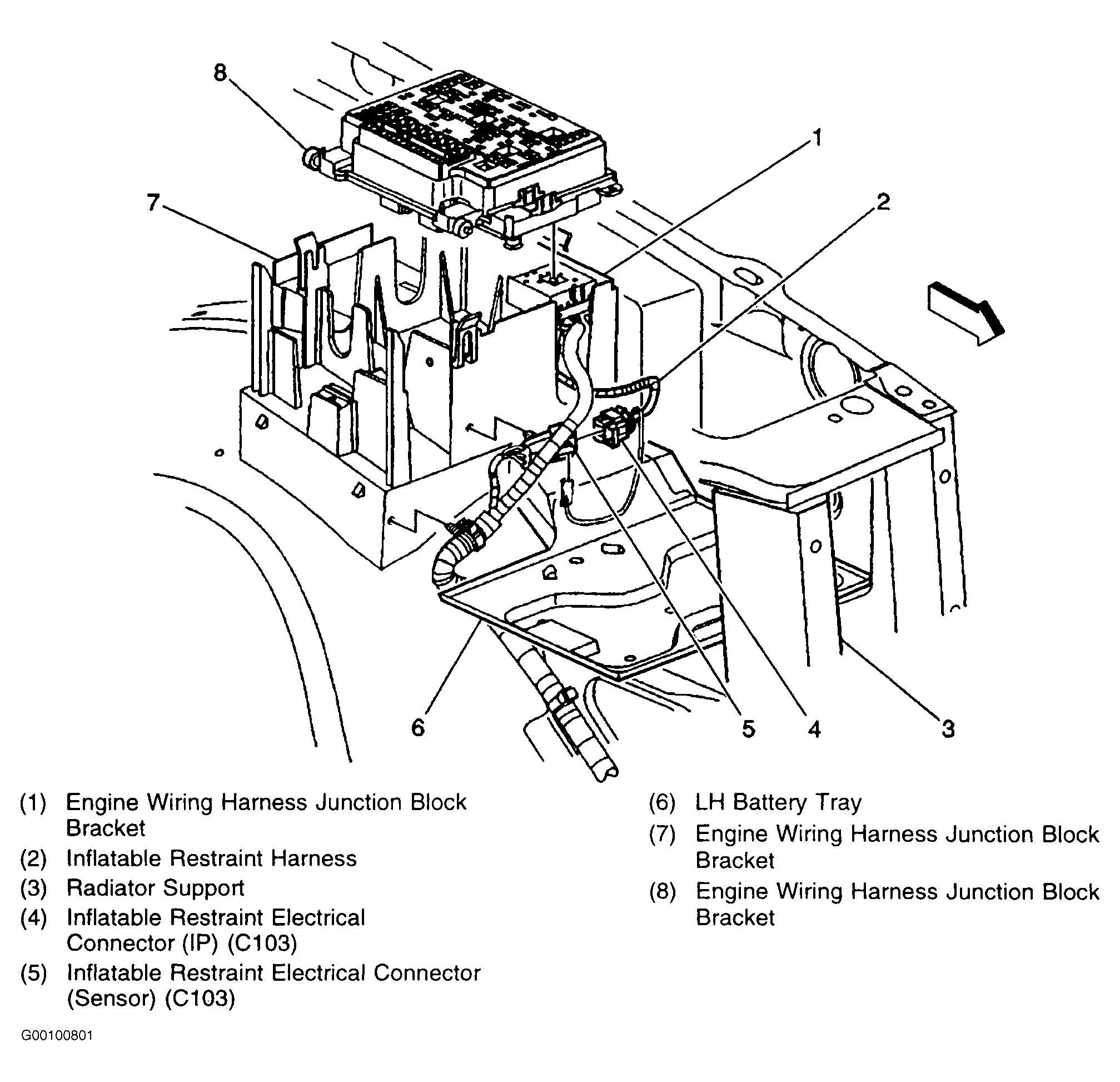

Underhood fuse block is located at the left side of the engine compartment to the rear of the battery. See Fig 1.

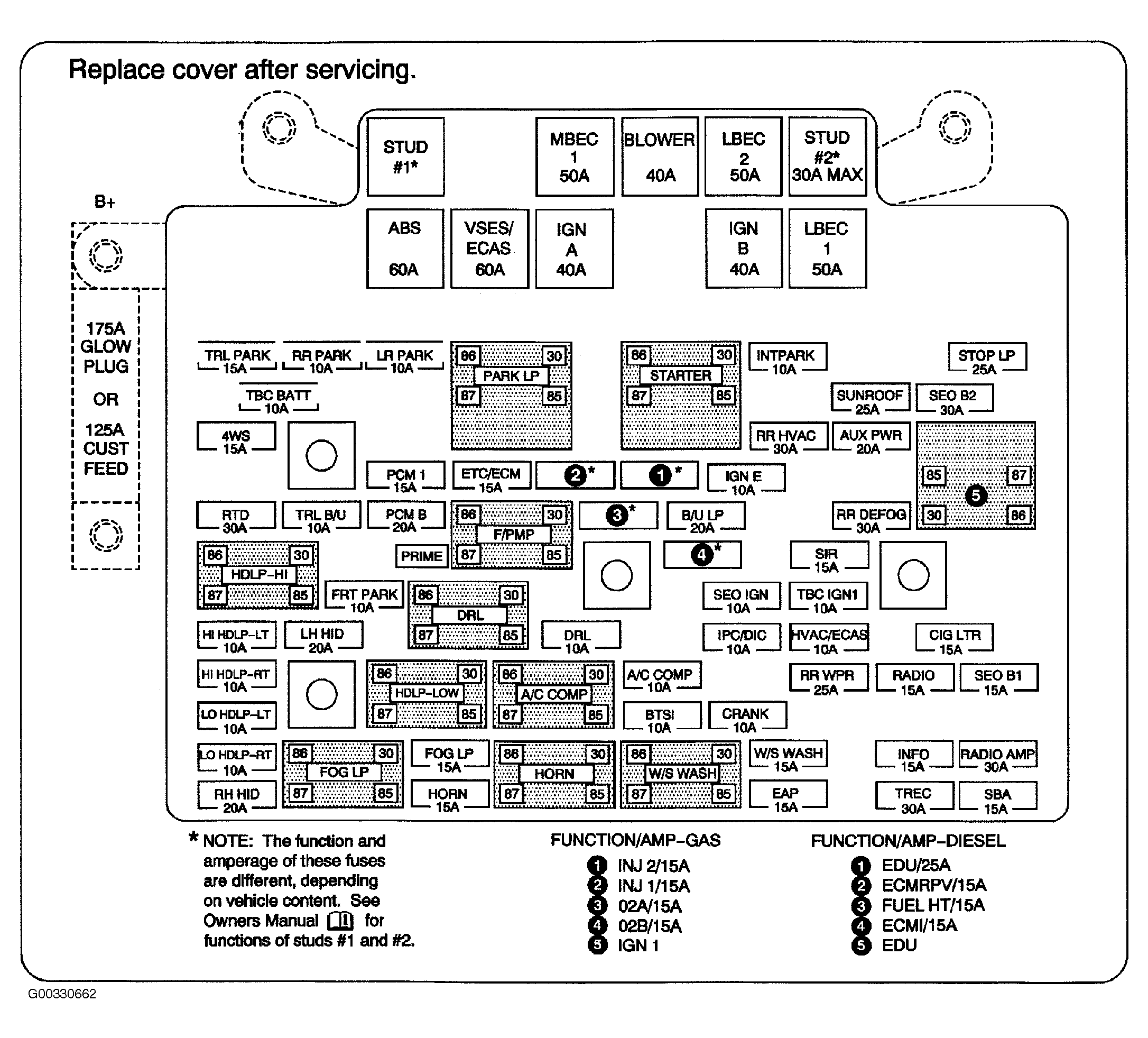

UNDERHOOD FUSE BLOCK LEGEND
| Fuse/Circuit Breaker | Rating | Description |
|---|---|---|
| FMX Fuses | ||
| STUD #1 | 40A | Trailer Wiring, Automatic Level Control (ALC) Compressor Relay |
| MBEC1 | 50A | SEAT CB, RT DOOR CB |
| BLOWER | 40A | Blower Motor |
| LBEC2 | 50A | LOCKS Fuse, DDM Fuse, PDM Fuse, ECC Fuse, AUX PWR 2 Fuse |
| STUD #2 | 30A | Trailer Wiring |
| ABS | 60A | Electronic Brake Control Module (EBCM) |
| VSES/ECAS | 60A | Electronic Brake Control Module (EBCM) |
| IGN A | 40A | Ignition Switch RUN, START, RUN/START/ACCY |
| IGN B | 40A | Ignition Switch RUN/ACC, RUN/START |
| LBEC 1 | 50A | FLASH Fuse, TBC 2A Fuse, TBC 2B Fuse, TBC 2C Fuse, LT DOORS Fuse |
| ATM Fuses & Relays | ||
| TRL PARK | 15A | Trailer Wiring |
| RR PARK | 10A | Exterior Lamps-Right Rear, Clearance Lamps-Right |
| LR PARK | 10A | Exterior Lamps-Left Rear, Clearance Lamps-Left |
| PARK LP Relay | - | TRLR PARK Fuse, LR PARK Fuse, RR PARK Fuse, FRT PARK, INT PARK Fuse, DRL Relay (Export) |
| STARTER Relay | - | Starter |
| INTPARK | 10A | ID Lamp |
| STOP LP | 25A | Stop Lamp Switch |
| TBC BATT | 10A | Body Control Module (BCM), PASS-Key Module |
| SUNROOF | 25A | Sunroof Relay |
| SEOB2 | 30A | Roof Beacon Relay |
| 4WS | 15A | Rear Wheel Steering Control Module, Evaporative Emission (EVAP) Canister Vent Solenoid |
| RR HVAC | 30A | HVAC Control Assembly-Rear Auxiliary |
| AUX PWR | 20A | Accessory Power Outlets, Auxiliary Power Outlets |
| IGN 1 Relay | - | SBA Fuse, ETC/ECM Fuse, PCM 1 Fuse, INJ 1 Fuse, INJ 2 Fuse |
| PCM 1 | 15A | Powertrain Control Module (PCM), Mass Air Flow (MFS) Sensor, Evaporative Emission (EVAP) Canister Purge Solenoid, Fuel Composition Sensor, Secondary Fuel Pump Relay |
| ETC/ECM | 15A | Throttle Actuator Control (TAC) |
| INJ 1 | 15A | Fuel Injectors-Odd-Numbered, Ignition Coils-Odd-Numbered |
| INJ2 | 15A | Fuel Injectors-Even-Numbered, Ignition Coils-Even-Numbered |
| IGN E | 10A | A/C COMP Relay, Park/Neutral Position (PNP) Swtich, Turn Signal/Multifunction Switch, Headlamp Leveling Components |
| RTD | 30A | Automatic Level Control (ALC) Compressor, Electronic Suspension Control (ESC) Module |
| TRL B/U | 10A | Body Control Module (BCM), Trailer Wiring, Back-Up Alarm |
| PCM B | 20A | Powertrain Control Module (PCM) |
| PRIME F/PMP Fuel Pump Relay | - | Fuel Pump |
| O2A | 15A | Heated Oxygen Sensors-before the catalytic converter |
| B/U LP | 20A | Park/Neutral Position (PNP) Switch |
| RR DEFOG | 30A | DEFOG Relay |
| HDLP-HI Relay | - | HI HDLP-LT Fuse, HI HDLP-RT Fuse |
| O2B | 15A | Heated Oxygen Sensors-after the catalytic converter |
| ATM Fuses & Relays Continued | ||
| SIR | 15A | Inflatable Restraint Sensing and Diagnostic Module (SDM), Memory Seat Module-Passenger, Inside Reaview Mirror |
| FRT PARK | 10A | Park/Turn Signal Lamps-Front, Marker Lamps-Front |
| DRL Relay | - | DRL Fuse |
| SEO IGN | 10A | DEFOG Relay, Instrument Panel Cluster (IPC), Rear Object Sensor Control Module |
| TBC IGN 1 | 10A | Body Control Module (BCM) |
| HI HDLP-LT | 10A | Headlamp-High Beam-Left |
| LH HID | 20A | Headlamp Ballast-Left |
| DRL | 10A | DRL Relay (Domestic), Daytime Running Lamps (Export) |
| IPC/DIC | 10A | Instrument Panel Cluster (IPC) |
| HVAC/ECAS | 10A | HVAC Control Module |
| CIG LTR | 15A | Cigar Lighter, Data Link Connector (DLC) |
| HI HDLP-RT | 10A | Headlamp-High Beam-Right |
| HDLP-LOW Relay | - | LO HDLP-LT Fuse |
| A/C COMP Relay | - | A/C Compressor Clutch Assembly |
| A/C COMP | 10A | A/C COMP Relay |
| RRWPR | 25A | Window Wiper Module-Rear |
| RADIO | 15A | Entertainment System Components |
| SEO B1 | 15A | Insturment Panel Cluster (IPC), Rear Fog Lamp Relay, Overhead Console, Roof Beacon Switch |
| LO HDLP-LT | 10A | Headlamp-Low Beam-Left, Headlamp Ballast-Left |
| BTSI | 10A | Stop Lamp Switch |
| CRANK | 10A | Powertrain Control Module (PCM) |
| LO HDLP-RT | 10A | Headlamp-Low Beam-Right, Headlamp Ballast-Right |
| FOG LP Relay | - | FOG LP Fuse |
| FOG LP | 15A | FOG LP Relay |
| HORN Relay | - | HORN Fuse |
| W/S WASH Relay | - | W/S WASH Fuse |
| W/S WASH | 15A | W/S WASH Relay |
| INFO | 15A | Vehicle Communication Interface Module (VCIM), Rear Seat Entertainment (RSE) Assembly, Remote Playback Device-CD Player |
| RADIO AMP | 30A | Audio Amplifier |
| RH HID | 20A | Headlamp Ballast-Right |
| HORN | 15A | Horn-Left, Horn-Right |
| EAP | 15A | Electronic Adjustable Pedals (EAP) Relay |
| TREC | 30A | Transfer Case Encoder Motor, Transfer Case Shift Control Module |
| SBA | 15A | Supplemental Brake Assist Pump Motor |
