Sunroof Motor/Actuator Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

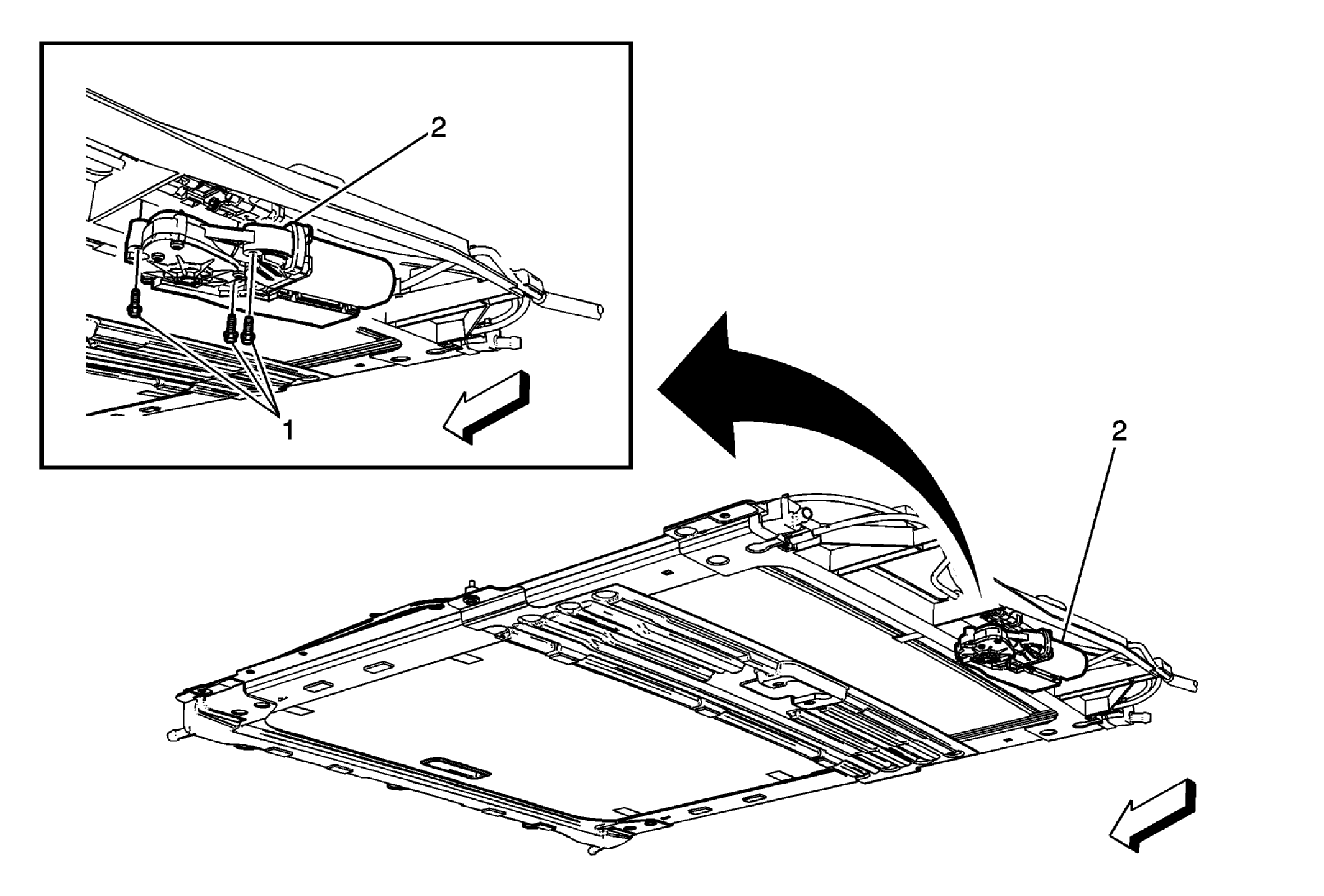

Fig 1: Sunroof Motor/Actuator Replacement
GM2055848Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement .
1 Sunroof Motor/Actuator Screw (Qty: 3)
CAUTION: Refer to Fastener Caution .

Procedure

  1. The sunroof window must be in the fully closed position before disconnecting the harness, to ensure synchronization of the sunroof motor to the sunroof module.
  2. Disconnect the electrical connector from the sunroof motor.

Tighten:  6 N.m (53 lb in).
2 Sunroof Motor/Actuator

Procedure

  1. Pull downward to disengage the motor/actuator from the sunroof module.
  2. Perform the timing/synchronization of the sunroof frame. Refer to Sunroof Track Timing/Synchronization .
  3. Install the motor, verify the sunroof operation.
  4. Ensure the motor/actuator initialization/teach process has been done. Refer to Sunroof Motor/Actuator Initialization/Teach Process .
  5. Verify the proper operation of the sunroof before installing the headliner.
  6. Install the headliner. Refer to Headlining Trim Panel Replacement .
