Component Locations

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

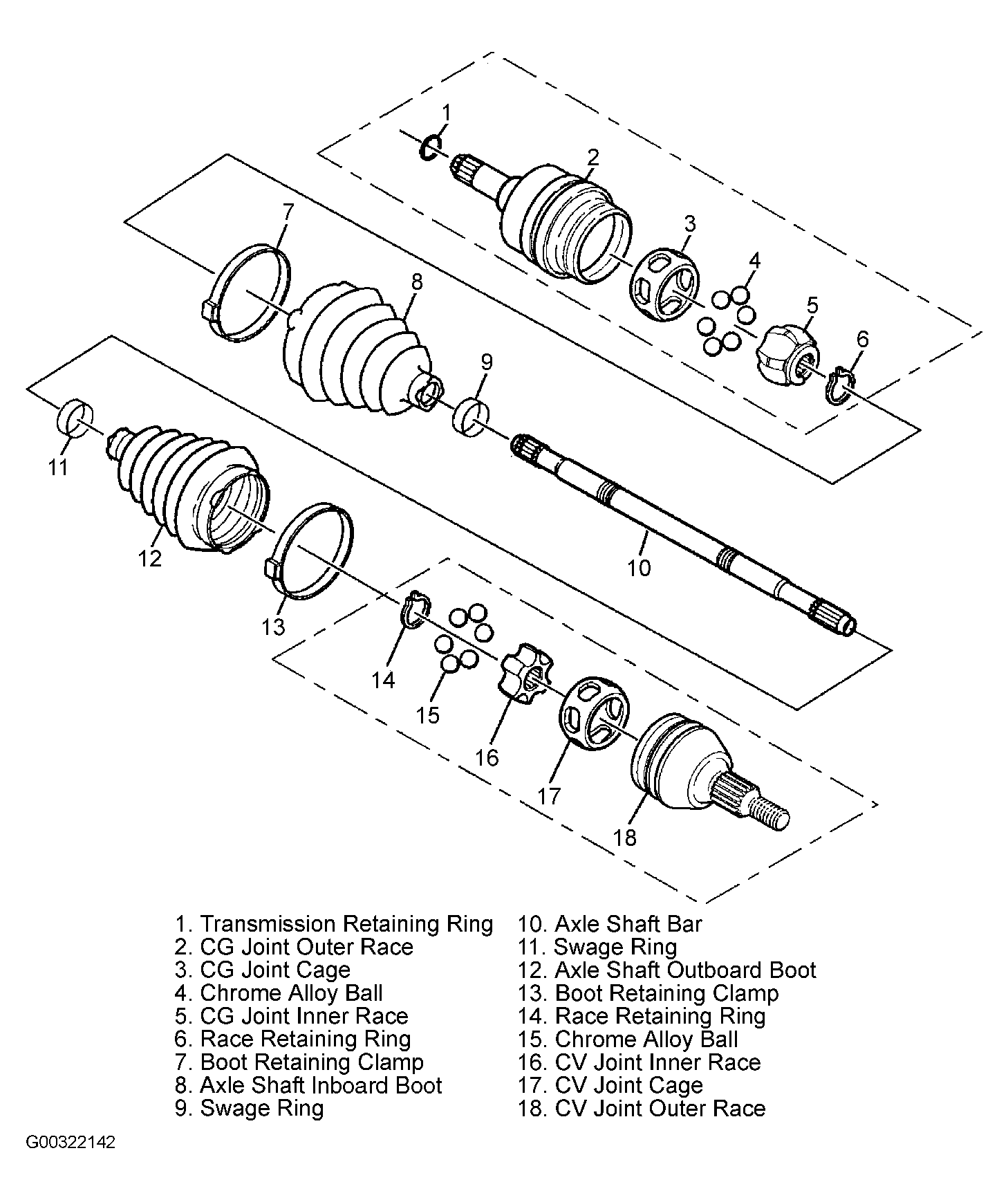

To locate and identify axle shaft components, see Fig 1 .

Fig 1: Exploded View Of Axle Shaft

Courtesy of GENERAL MOTORS CORP.
