Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat back frame to the seat assembly.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts (2,8) to the recliners on the right and left side.

    Tighten

    Tighten the bolts (2,8) to 32 N.m (24 lb in).

  3. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
  4. Install the seat in the vehicle. Refer to Seat Replacement .

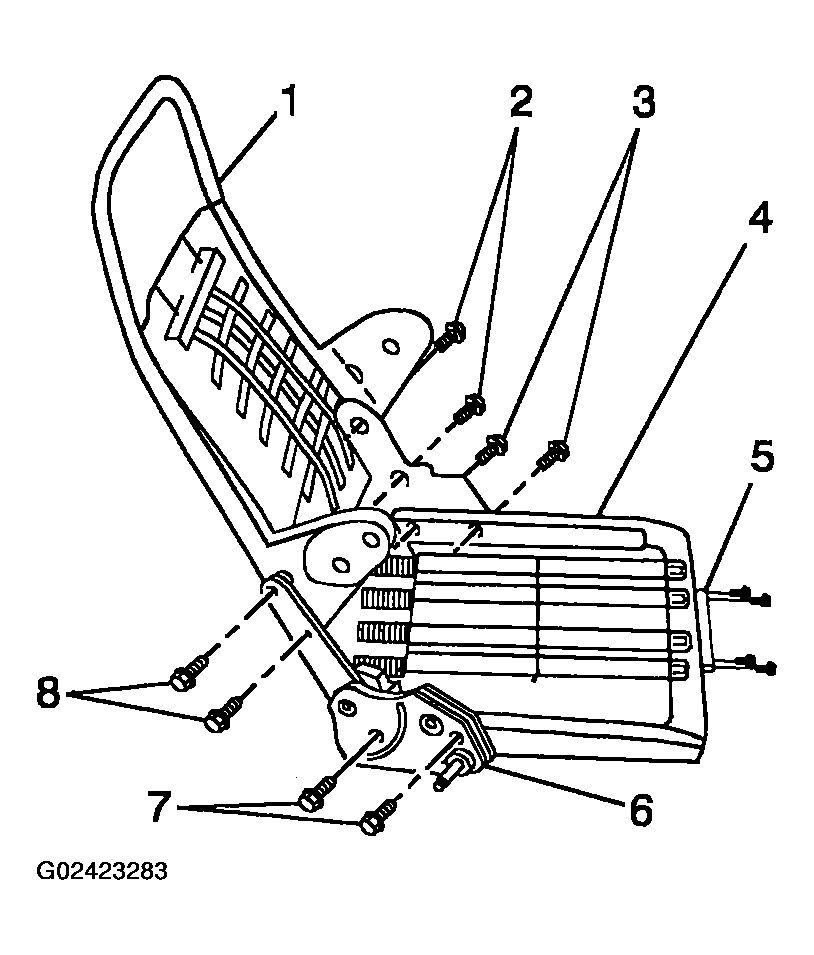

    Fig 1: Installing Front Seat Back Frame
    G02423283Courtesy of GENERAL MOTORS CORP.
