Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

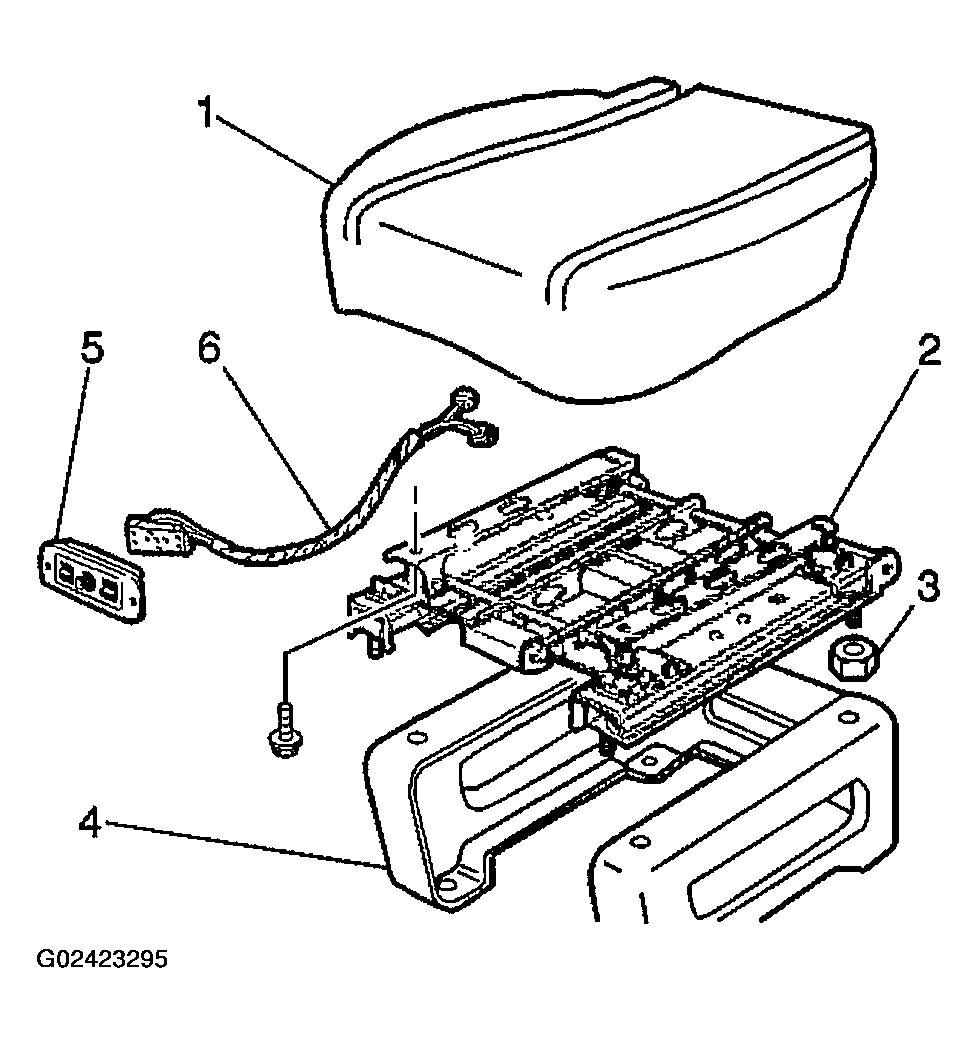

- Install the power seat adjuster switch (5) to the vehicle.
- Connect the electrical connector to the power seat adjuster switch.
- Install the power seat adjuster switch to the seat cushion (1).CAUTION: Refer to FASTENER NOTICE .
- Install the screws in order to retain the power seat adjuster switch to the seat cushion.
Tighten
Tighten the screws to 2 N.m (18 lb in).
