Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Gently pull the top front door bumper from the hole in the door.

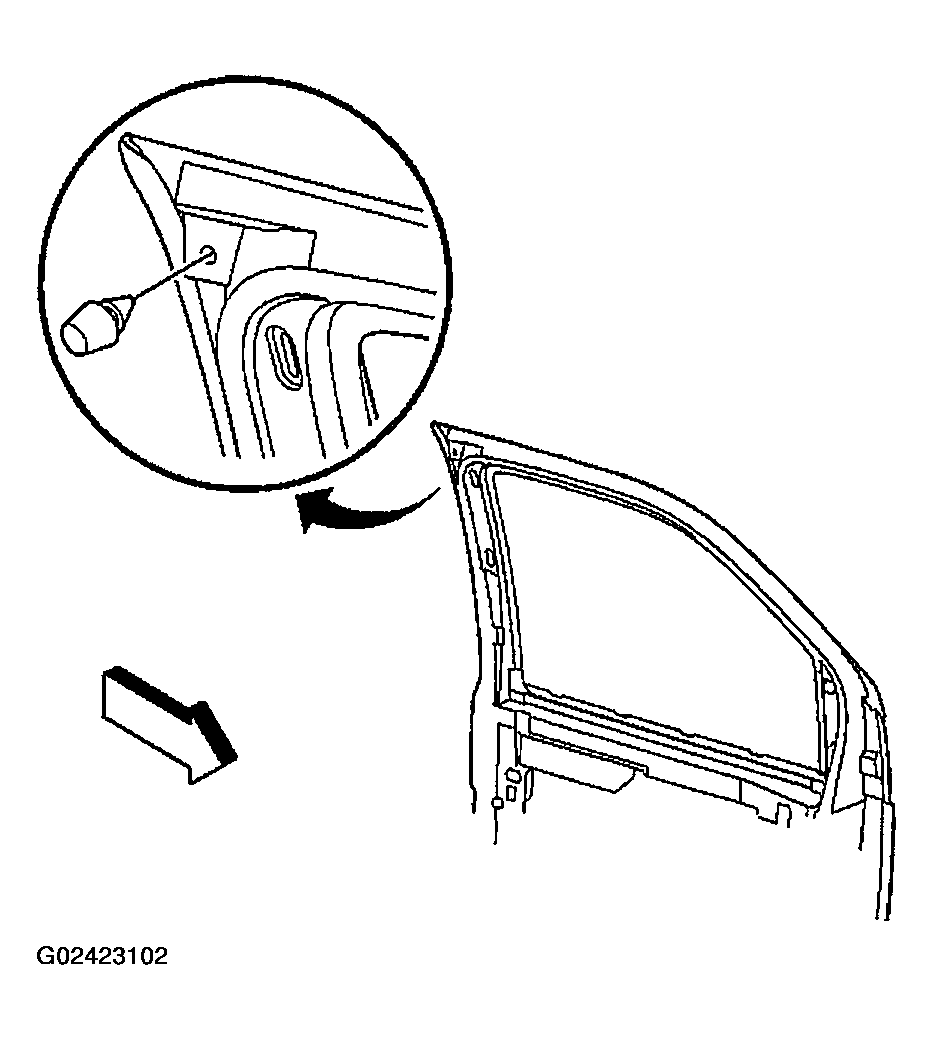

    Fig 1: Removing Top Front Door Bumper
    G02423102Courtesy of GENERAL MOTORS CORP.
  3. Gently pull the bottom front door bumper from the hole in the door.

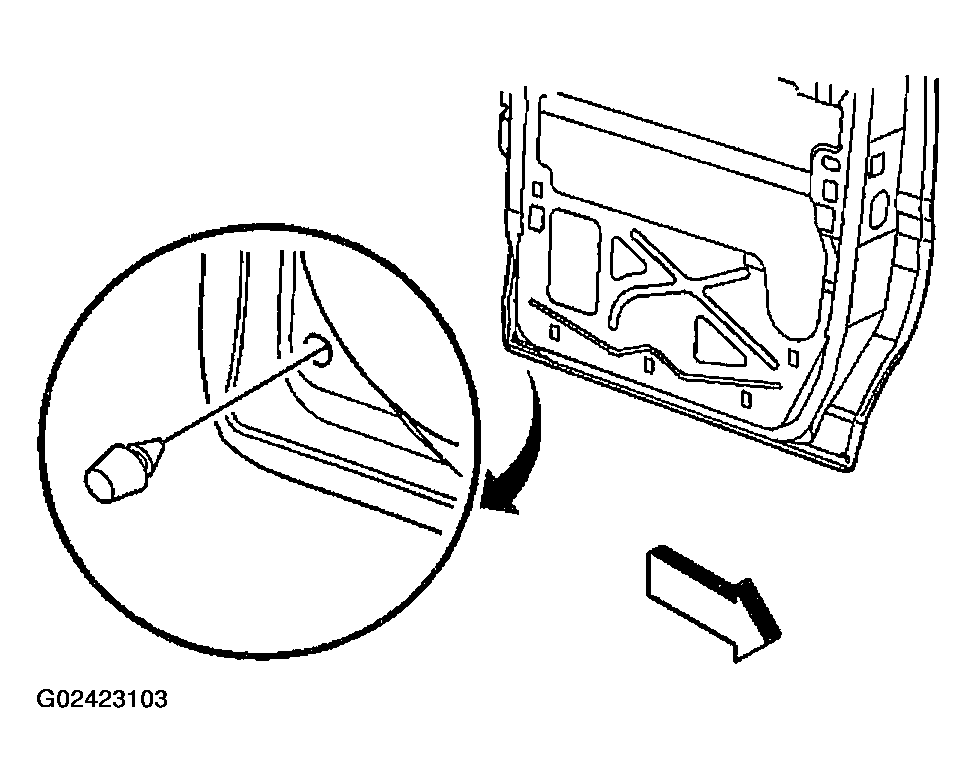

    Fig 2: Removing Bottom Front Door Bumper
    G02423103Courtesy of GENERAL MOTORS CORP.
