Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 40 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 60 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Left (E26, 40 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Left (E26, 60 Door) .
  2. Remove the hinged side window or the stationary side window. Refer to HINGED BODY SIDE WINDOW REPLACEMENT or BODY SIDE STATIONARY WINDOW REPLACEMENT .
  3. Remove the weatherstrips, if needed. Refer to Weatherstrip Replacement - Rear Side Door  or Weatherstrip Replacement - Side Door Window .
  4. Remove the side rear door upper and lower door wedges from the door. Refer to Door Wedge Replacement - Sliding .
  5. Remove the upper and the lower door latches. Refer to Latch Replacement - Side Door Upper  and Latch Replacement - Side Door Lower .
  6. Remove the latch rods from the door.
  7. Remove the latch handle. Refer to Latch Control Handle Replacement - Side Rear Door .
  8. Remove the latch striker. Refer to Striker Replacement - Door (w/o PRP)  or Striker Replacement - Door (w/ PRP) .
  9. Remove the side rear door hinge pins using J 41226-50.
  10. Remove the side rear door from the vehicle.

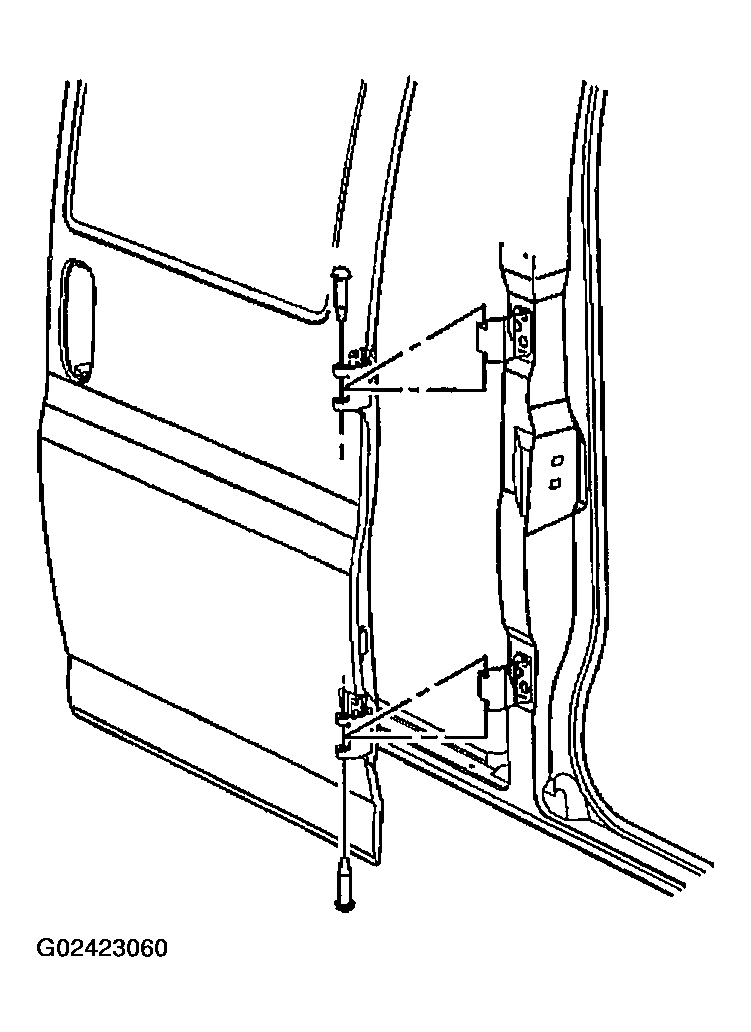

    11. Fig 1: Removing Side Rear Door
    G02423060Courtesy of GENERAL MOTORS CORP.
