Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 40 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 60 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Left (E26, 40 Door)  or Trim Panel Replacement - Side Rear Door - 60/40 Left (E26, 60 Door) .
  2. Disconnect the side rear door lower latch lock rod (1) from the side rear door lower latch (2).
  3. Remove the bolts (4) that retain the side rear door lower latch (2) to the door.
  4. Remove the side rear door lower latch (2) from the door.

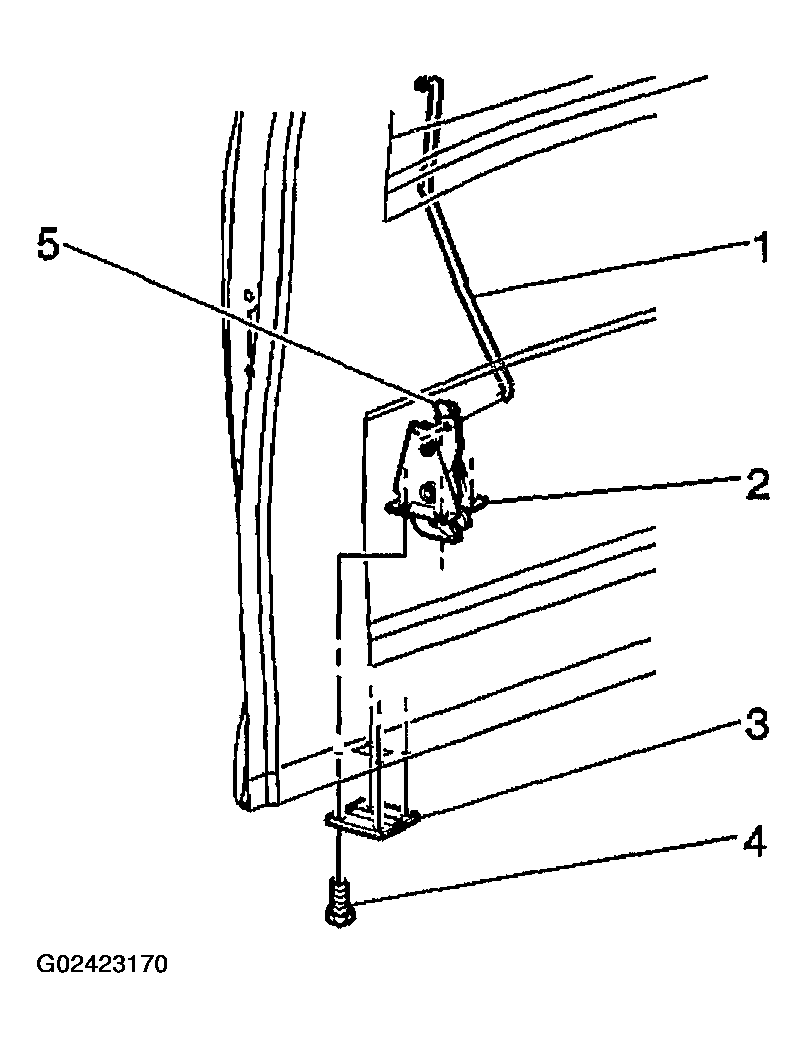

    Fig 1: Removing Side Door Lower Latch
    G02423170Courtesy of GENERAL MOTORS CORP.
