Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 40 Door) or Trim Panel Replacement - Side Rear Door - 60/40 Right (E24, 60 Door) or Trim Panel Replacement - Side Rear Door - 60/40 Left (E26, 40 Door) or Trim Panel Replacement - Side Rear Door - 60/40 Left (E26, 60 Door) .

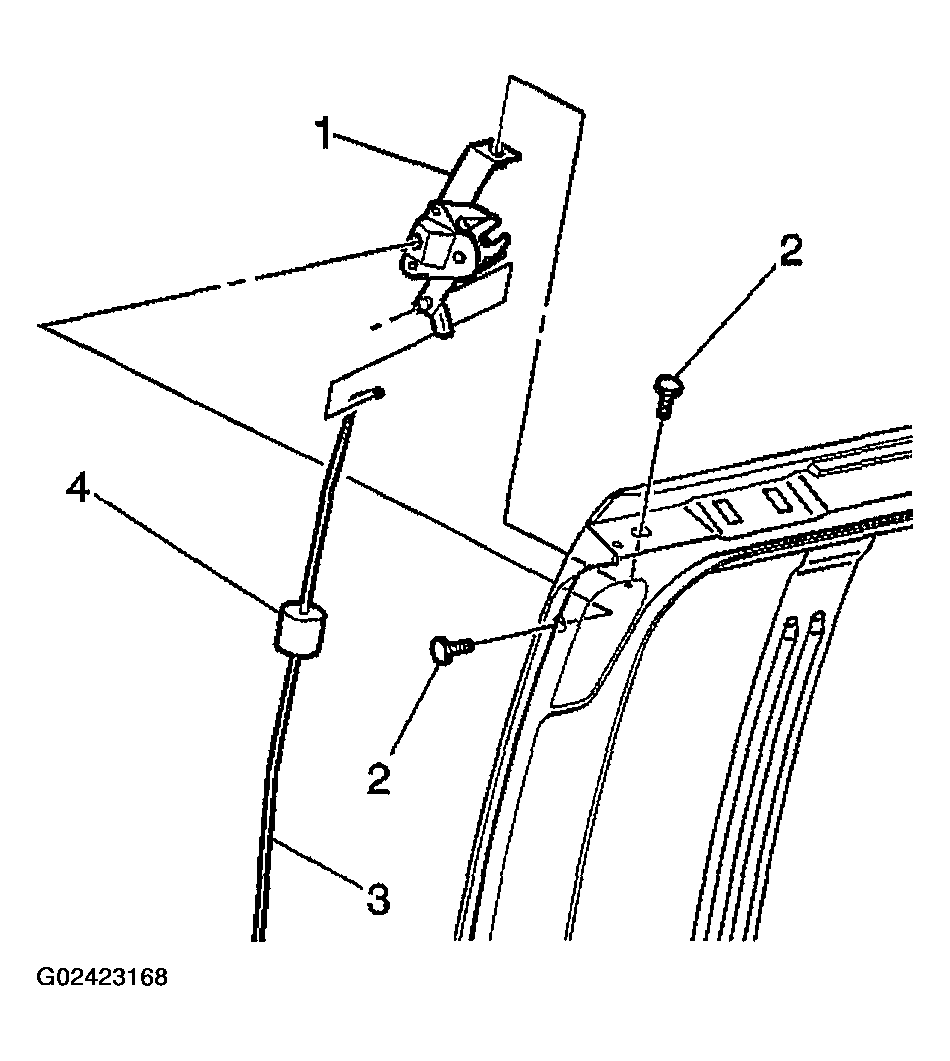

- Disconnect the side rear door upper latch lock rod from the side rear door upper latch (1).
- Remove the bolts (2) that retain the side rear door upper latch (1) to the door.
- Remove the side rear door upper latch (1) from the door.
