Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Disconnect the front door lock cylinder rod from the front door lock.
  4. Remove the front door lock cylinder retainer from the front door lock cylinder.
  5. Remove the front door lock cylinder from the front door lock cylinder hole with the lock cylinder rod.
  6. Remove the lock cylinder rod from the front door lock cylinder.

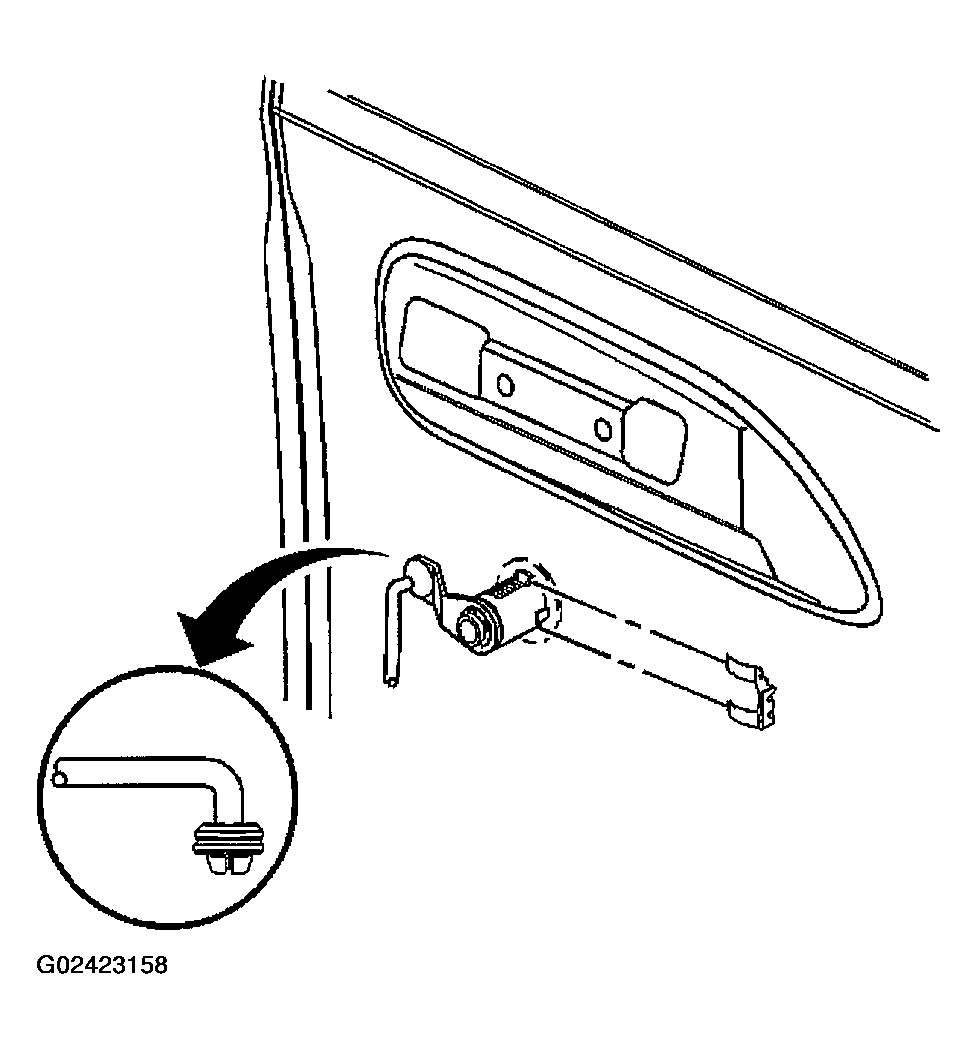

    Fig 1: Removing Door Lock Cylinder
    G02423158Courtesy of GENERAL MOTORS CORP.
