Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the commercial outside rearview mirror head from the vehicle.
  2. Remove the nuts that retain the commercial outside rearview mirror braces to the door.
  3. Remove the commercial outside rearview mirror braces from the vehicle.

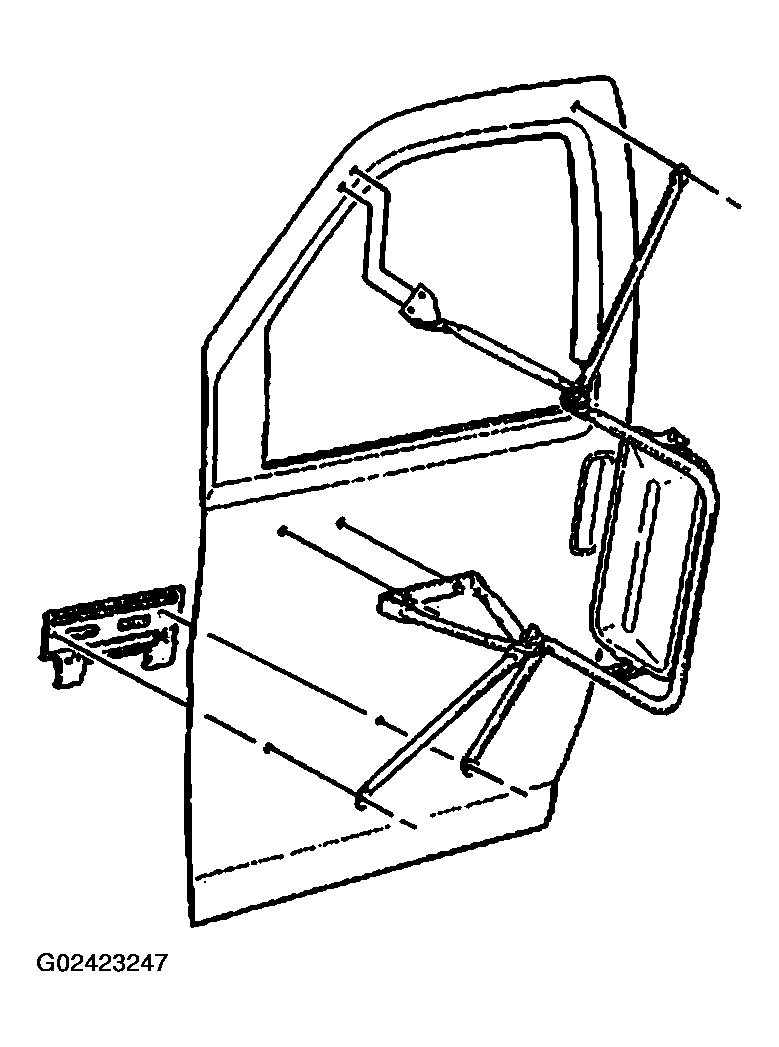

    Fig 1: Removing Commercial Rearview Mirror
    G02423247Courtesy of GENERAL MOTORS CORP.
