Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sliding door upper roller bracket to the vehicle.
  2. Install the sliding door upper roller bracket to the rear of the upper track.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the bolts that retain the upper roller bracket to the door.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

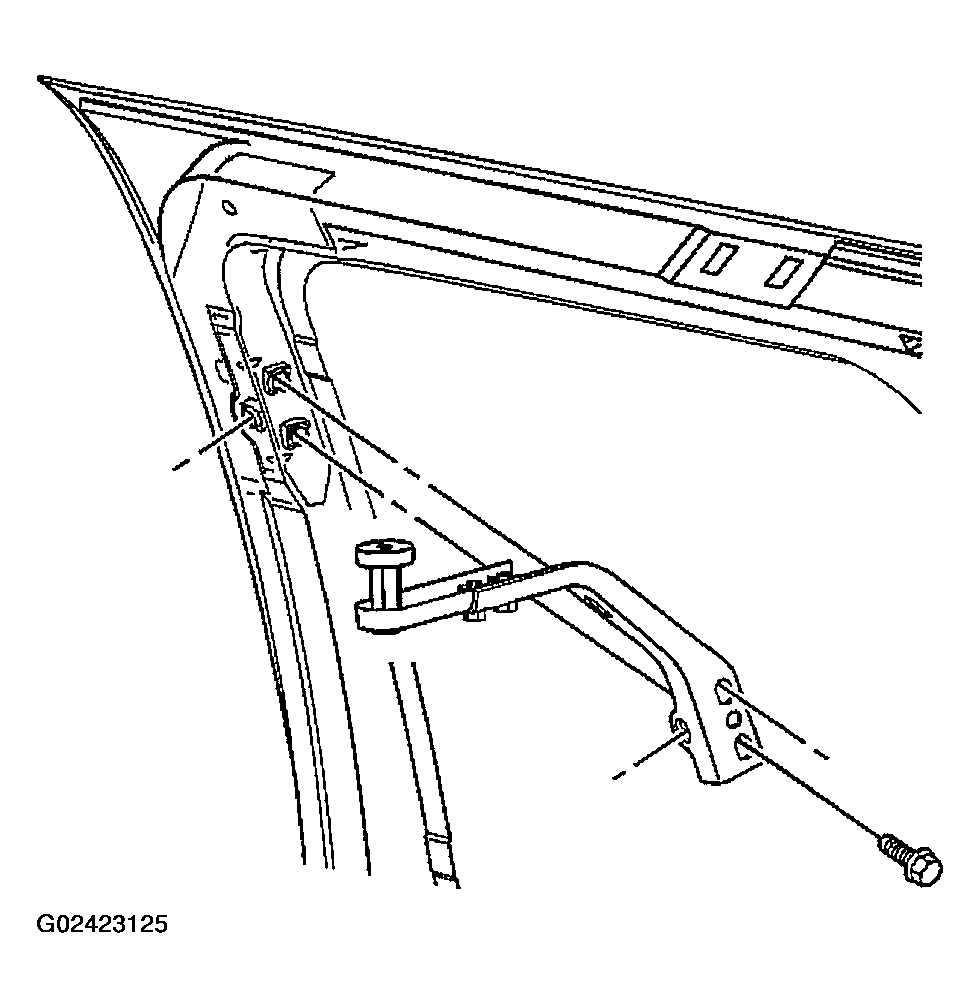

    4. Fig 1: Installing Sliding Door Upper Roller Bracket
    G02423125Courtesy of GENERAL MOTORS CORP.
  4. Install the passenger side front corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - RIGHT SIDE FRONT .
  5. Install the sliding side door upper track garnish molding. Refer to Garnish Molding - Rear Side Door Upper Track .
  6. Install the sliding side door upper trim panel. Refer to Trim Panel Replacement - Sliding Door .
  7. Install the sliding side door upper roller bracket cover. Refer to Roller Bracket Cover Replace - Sliding Door Upper .
