Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .
Remove the bolts that retain the check assembly cover.
Remove the check assembly cover from the stepwell.

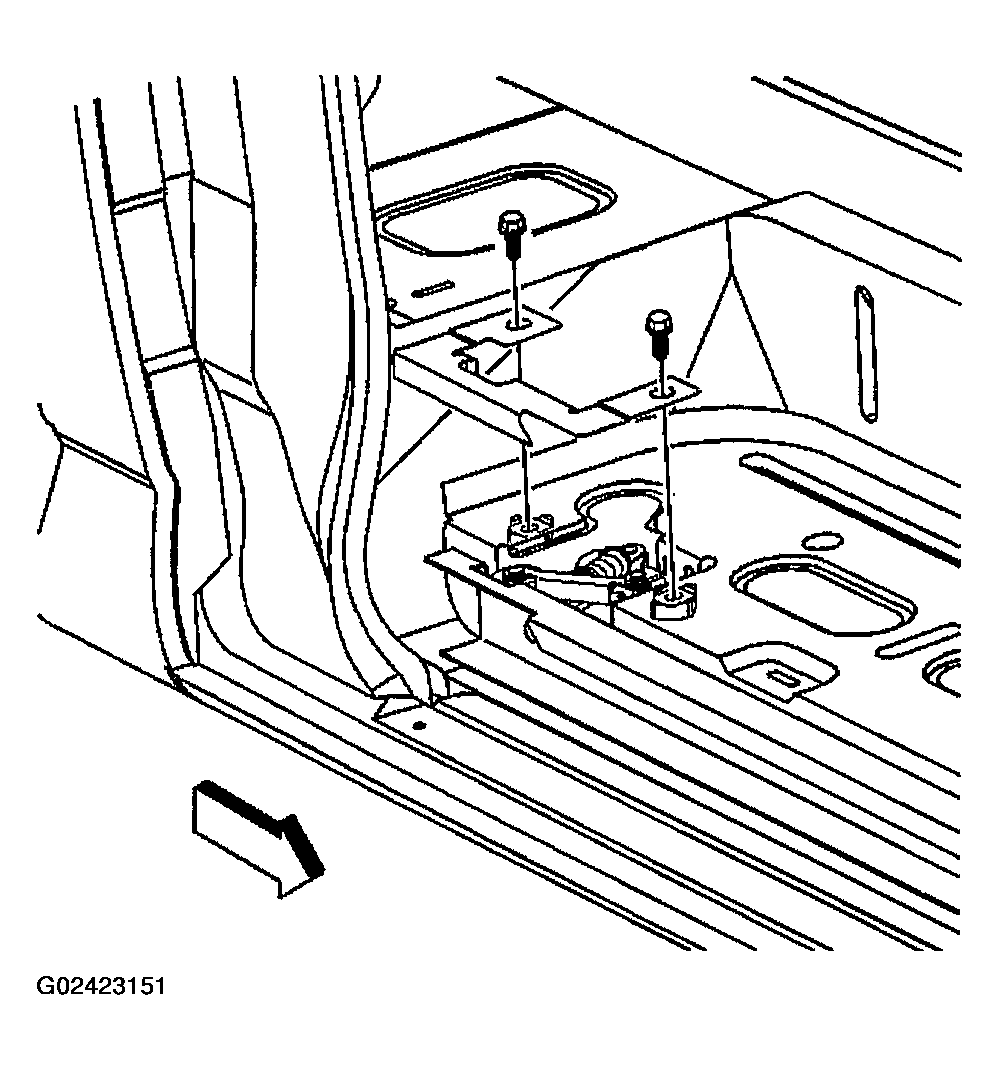

Fig 1: Removing Check Assembly Cover
Courtesy of GENERAL MOTORS CORP.
Remove the nuts (2) that retain the check assembly (1) to the sliding side door lower track (3).
Remove the check assembly (1) from the sliding side door lower track (3).

Fig 2: Removing Sliding Door Check Assembly
Courtesy of GENERAL MOTORS CORP.
