Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim plate. Refer to Door Trim Plate Replacement - Front .
  2. Remove the armrest (3). Refer to Armrest Replacement .
  3. Remove the door trim panel screws (2), located behind the armrest.
  4. Use the J 38778  to disengage the retainers around the outside edges of the door trim panel (1).
  5. Slide the door trim panel (1) upwards to release the door panel from the door.
  6. Remove the front door panel (1) from the vehicle.

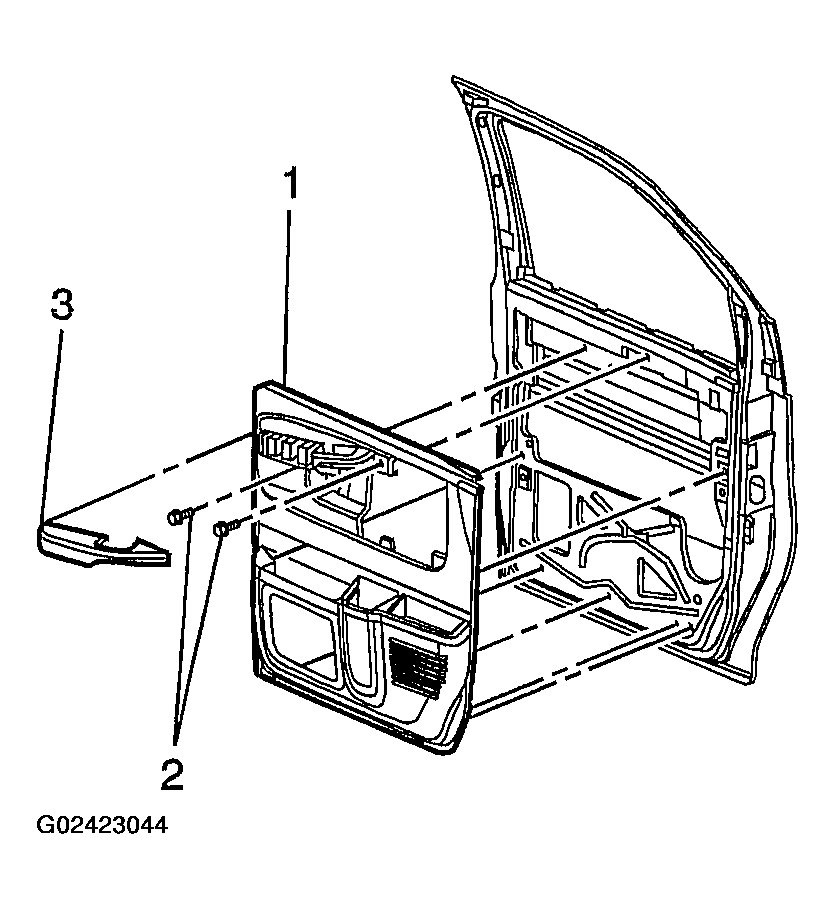

    Fig 1: Removing Side Front Door Trim Panel
    G02423044Courtesy of GENERAL MOTORS CORP.
