Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hinge pillar trim panel. Refer to TRIM REPLACEMENT - HINGE PILLAR .
  2. Remove the front door upper pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
  3. Remove the front door lower pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR .
  4. Remove the front door stepwell mat. Refer to MAT/CARPET REPLACEMENT - FRONT FLOOR .
  5. Gently pull the door opening weatherstrip from the door opening pinch-weld flange.

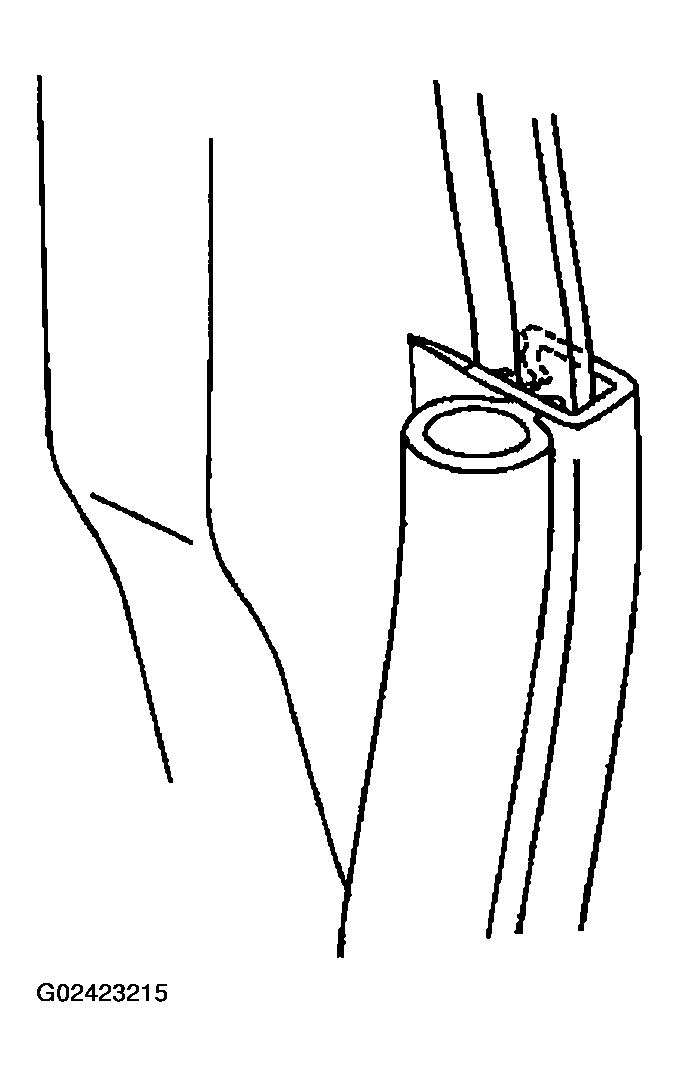

    Fig 1: Pulling Door Opening Weatherstrip From Pinch-Weld Flange
    G02423215Courtesy of GENERAL MOTORS CORP.
  6. Remove the door opening weatherstrip from the vehicle.

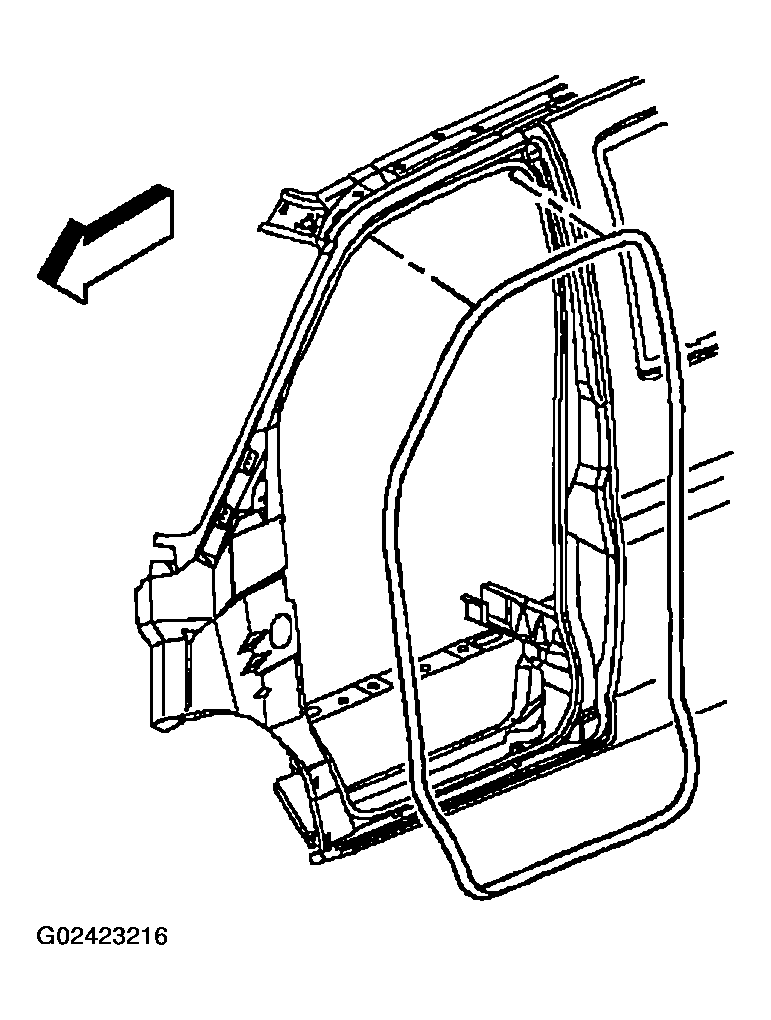

    Fig 2: Removing Front Door Opening Weatherstrip
    G02423216Courtesy of GENERAL MOTORS CORP.
