Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the hinged body side window. Refer to HINGED BODY SIDE WINDOW REPLACEMENT .
  3. Pull the side door window weatherstrip from the window opening pinch-weld flange.

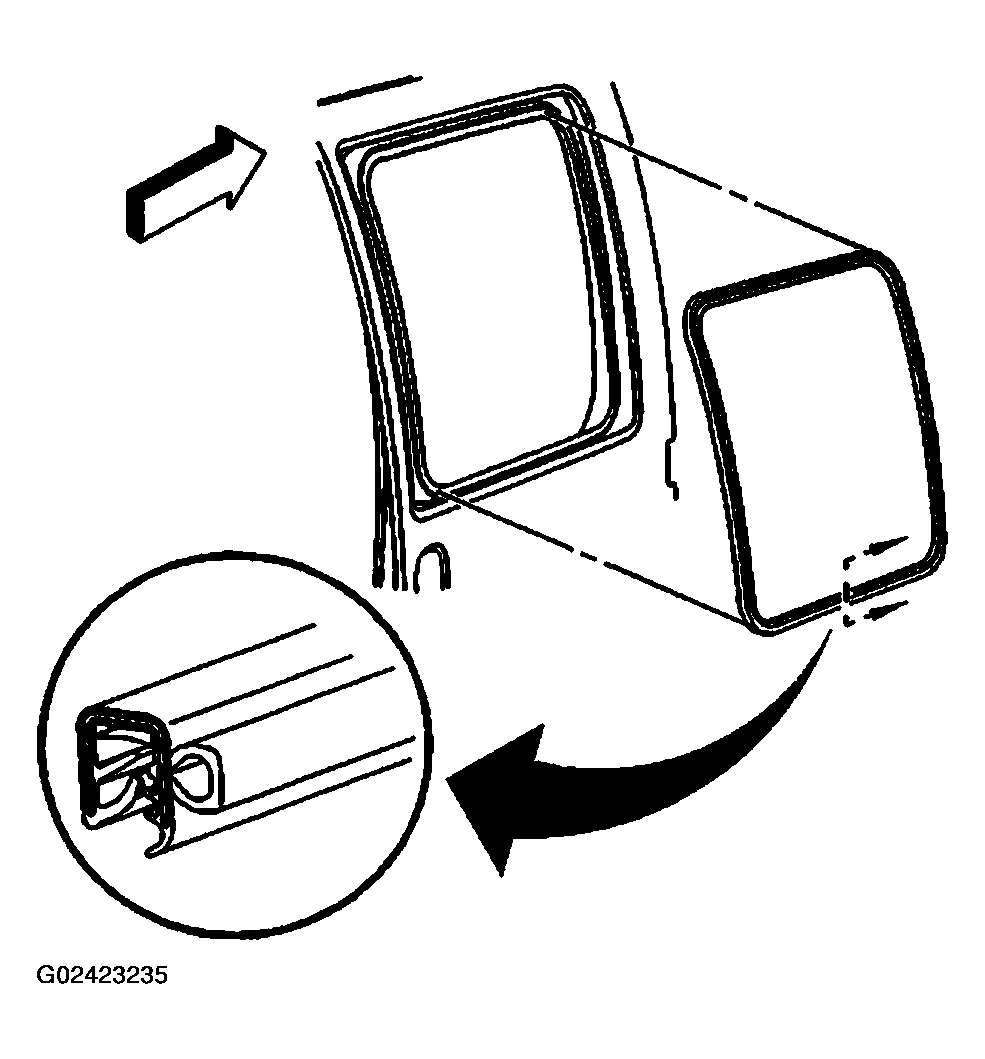

    Fig 1: Removing Side Door Window Weatherstrip
    G02423235Courtesy of GENERAL MOTORS CORP.
