Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door upper trim panel. Refer to Trim Panel Replacement - Sliding Door .
  2. Remove the hinged body side window. Refer to HINGED REAR WINDOW REPLACEMENT .
  3. Pull the sliding side door window weatherstrip from the window opening pinch-weld flange.
  4. Remove the sliding side door window weatherstrip from the vehicle.

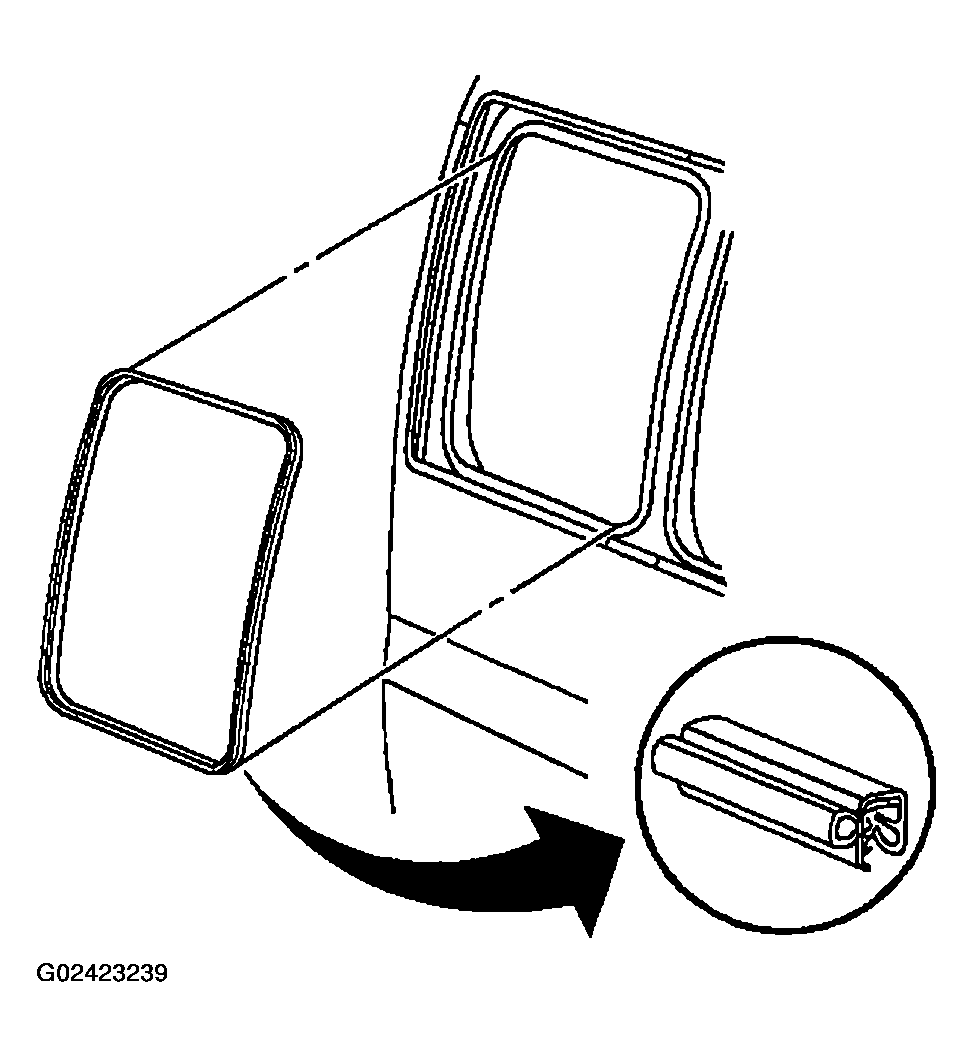

    Fig 1: Removing Sliding Door Window Weatherstrip
    G02423239Courtesy of GENERAL MOTORS CORP.
