Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

Install the front floor mat/carpet to the vehicle.

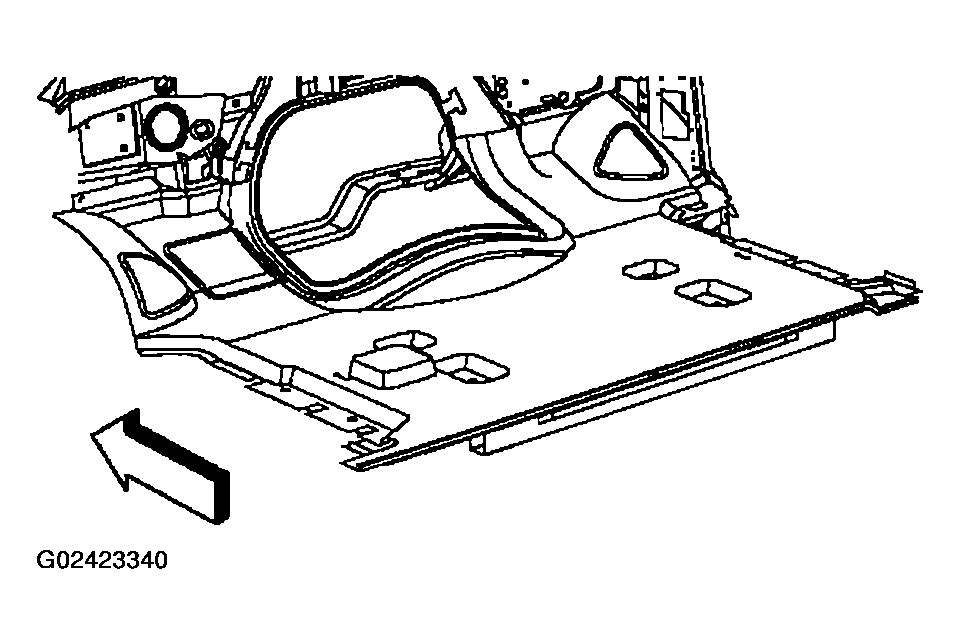

Fig 1: Installing Front Floor Mat/Carpet

Courtesy of GENERAL MOTORS CORP.

Install the front door stepwell mat. Refer to Mat Replacement - Stepwell .
Install the hinge pillar trim panel. Refer to Trim Replacement - Hinge Pillar .
Install the engine cover. Refer to Engine Cover Replacement .
Install the front seats. Refer to SEAT REPLACEMENT .
