Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the coolant recovery reservoir bolt and reposition the reservoir.
WARNING: Refer to BATTERY DISCONNECT CAUTION .
Disconnect the battery negative cable from the battery negative terminal. Refer to Battery Negative Cable Disconnect/Connect Procedure .
Disconnect the battery positive cable from the battery positive terminal. Refer to Battery Positive Cable Replacement .
Remove the battery limiter from the vehicle if equipped.

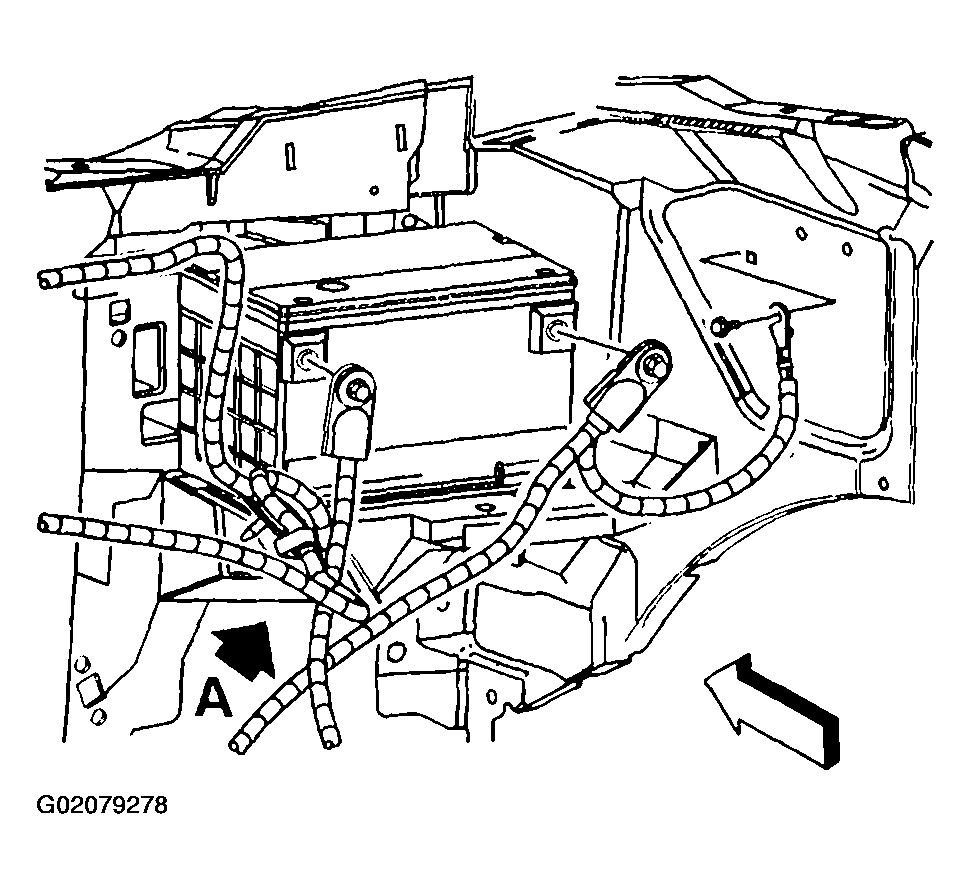

Fig 1: Disconnecting Battery Negative & Positive Cables
Courtesy of GENERAL MOTORS CORP.
Remove the battery hold-down bolt and retainer.
Remove the battery.

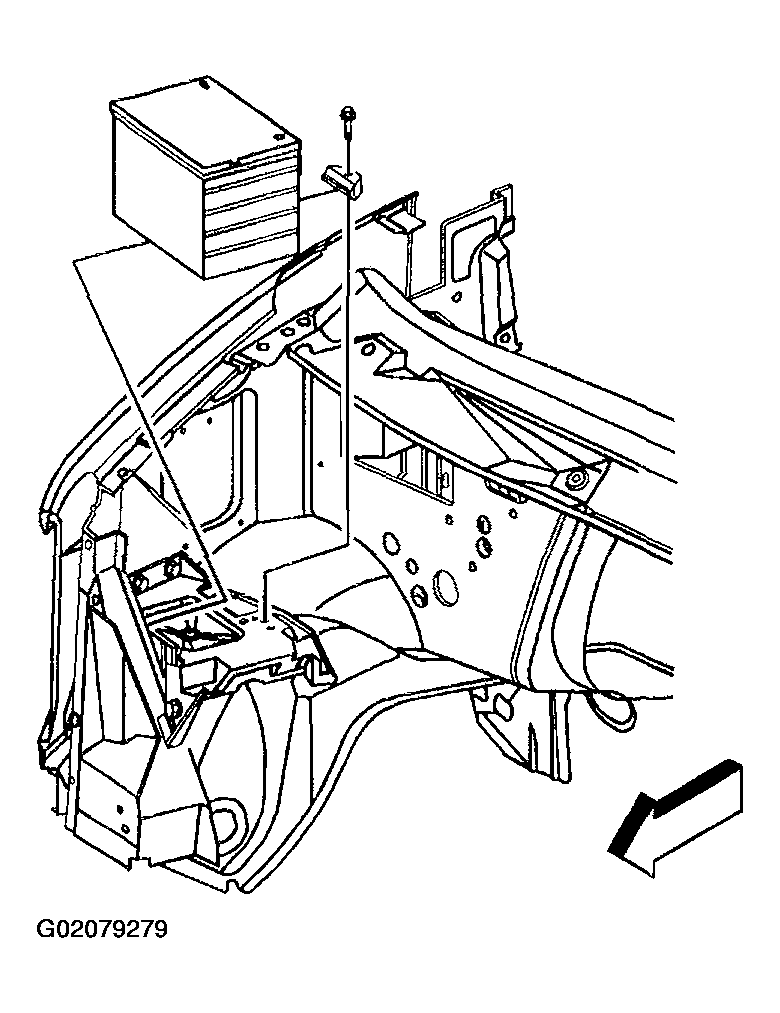

Fig 2: Removing Battery Hold-Down Retainer & Battery
Courtesy of GENERAL MOTORS CORP.
Remove the battery tray bolts.
Remove the battery tray from the vehicle.

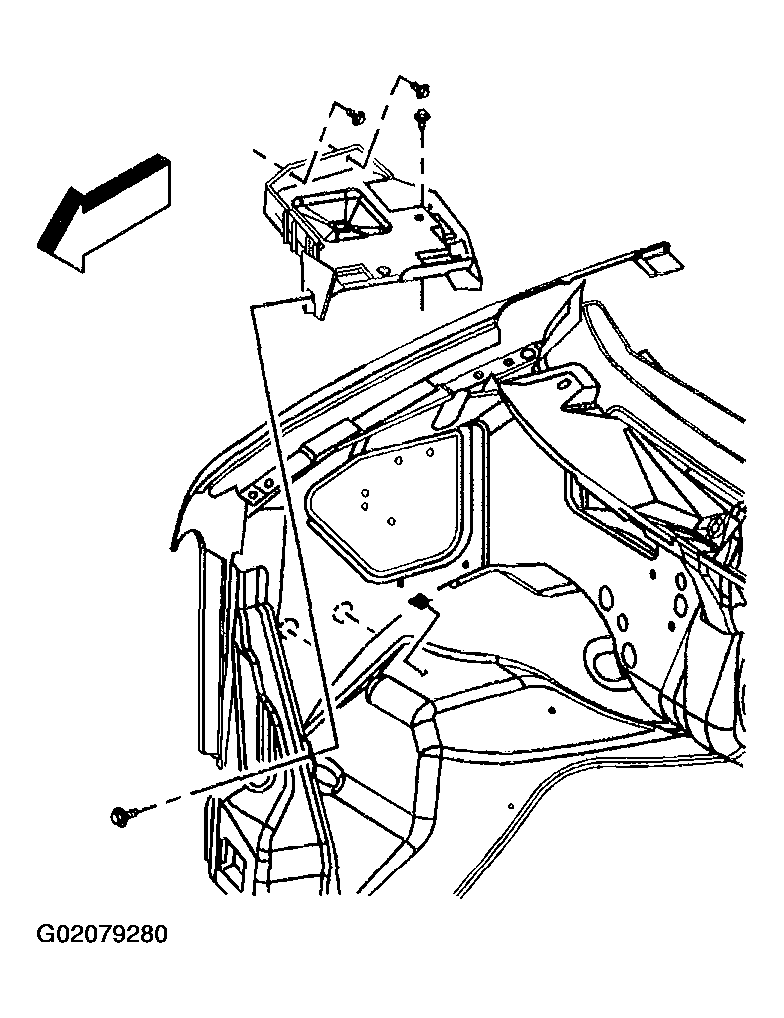

Fig 3: Removing Battery Tray Bolts & Tray
Courtesy of GENERAL MOTORS CORP.
