Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the back up lamp bulb into the socket.
Install the back up lamp socket (1) into the rear compartment lid applique by inserting it and turning it clockwise.

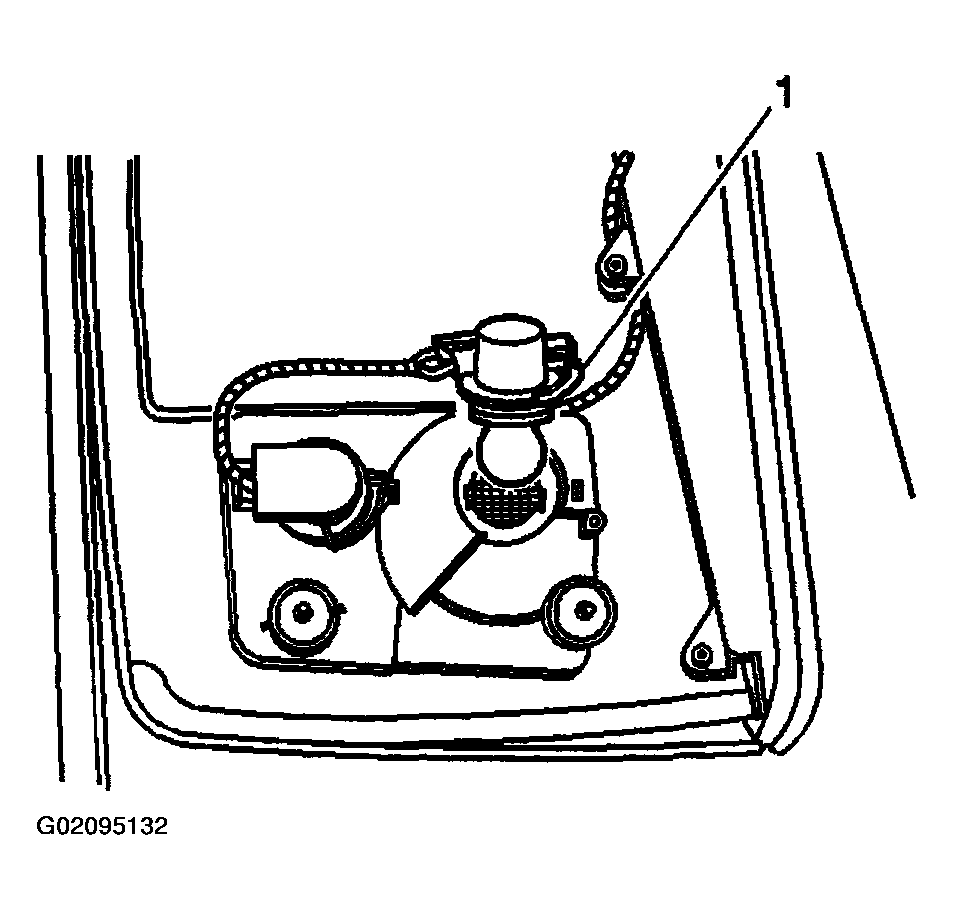

Fig 1: Installing Back Up Lamp Socket
Courtesy of GENERAL MOTORS CORP.
Install the rear compartment lid applique to the rear compartment lid. Refer to BODY REAR END in Body Rear End.
Close the rear compartment lid.
